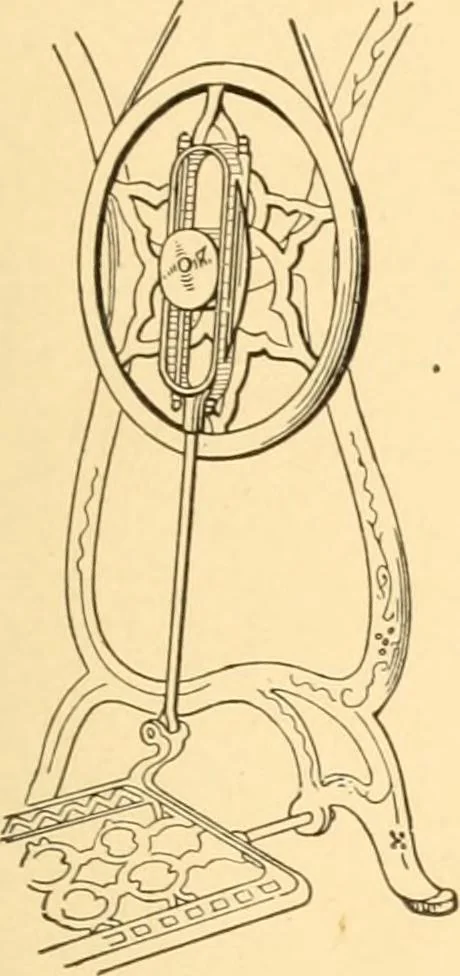

638. THE DEAD CENTER PROB-LEM. The crank pin is held off the cen-ter by the spring J, the tension of whichalways pushes the crank pin off the center.Shows the action of a single treadle in■> the two extreme positions. 639. THE DEAD CENTER PROBLEM.A supplementary crank set at an angle with… … 640. CRANK SUBSTITUTE. The shaft to bedriven has recesses in which are pawls or frictiondevices, two rings being placed on the sleeve hav-ing internal ratchets when pawls are used, whilebands are connected to the rings and to a frame sothat when the frame is moved downward one of therings on the…
