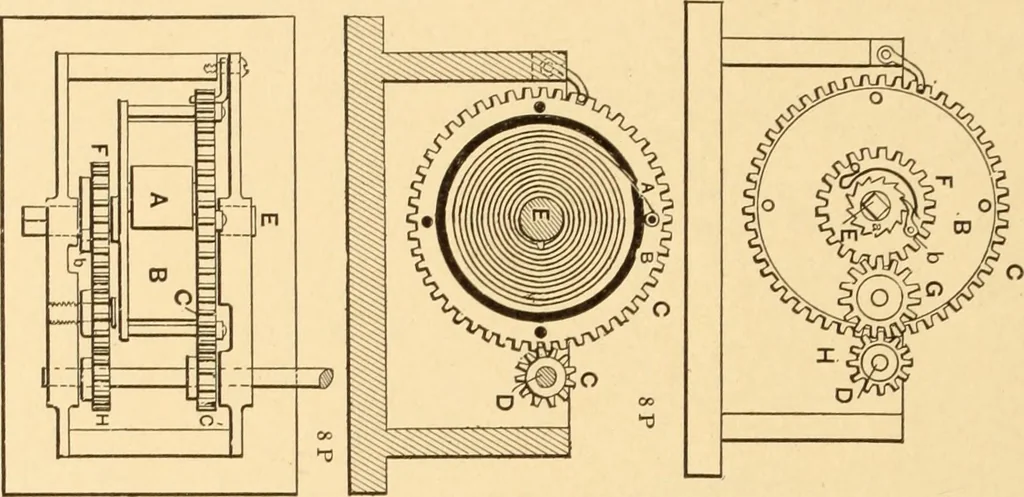

665. WEIGHT-DRIVEN MOTOR. A gear train and winding drum for arope ; a ratchet wheel and pawl forwinding up the weight. A fly wheel,shaft, and crank gives a reciprocatingmotion to a lever or for any purpose ofmotion. 254 MOTION AND CONTROLLING DEVICES, ETC. 666. SPRING MOTOR. With continuous motion… … F, gear loose on shaft and carrying pawl b. G, idler gear betweenE and D. Used for running sewing machines. 667. Section showing spring and driving gear. 668. Plan with driving and winding gear, which does not stop themotion while winding. 669. WEIGHT-DRIVEN MOTOR. The power is furnished bythe two…
