Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries (1910)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The N. W. Henley publishing company · leaf 348

An illustration from Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries, 1910, leaf 348

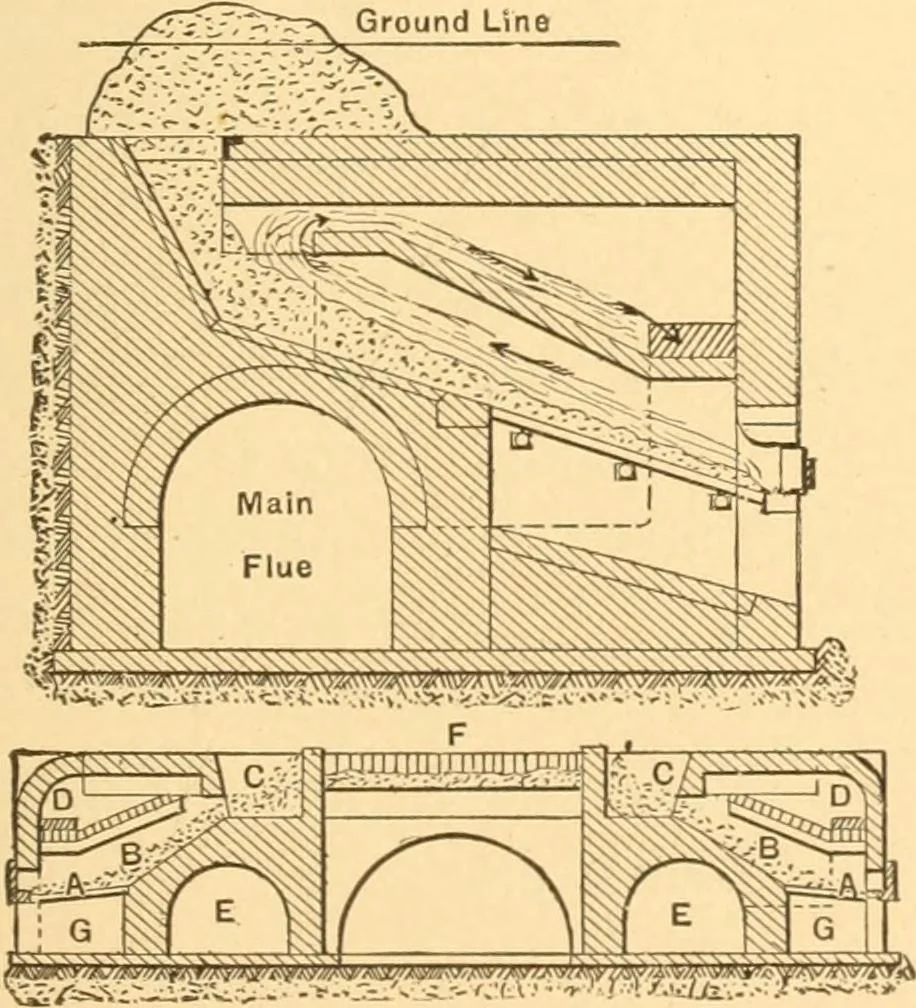

sh. Vertical and trans-verse sections of a double Hne of furnaces. The grates where^he fire is made are shown at A. At B therefuse to be destroyed is shown in aninclined flue where it is being dried,and as it is consumed on the grate,descends on the slope of the flue,fresh matter being supplied… … 348 MISCELLANEOUS DEVICES. 893. LIFE-SAVING NET. For bottom of elevator shafts. Astrong rope net, F, held on two sides by the rods, G, which are in turn supported on each end by thestrut arms C. The lower endsof these arms fit the bearingsin the pillow blocks, B, whichare bolted to a stout plank,…
