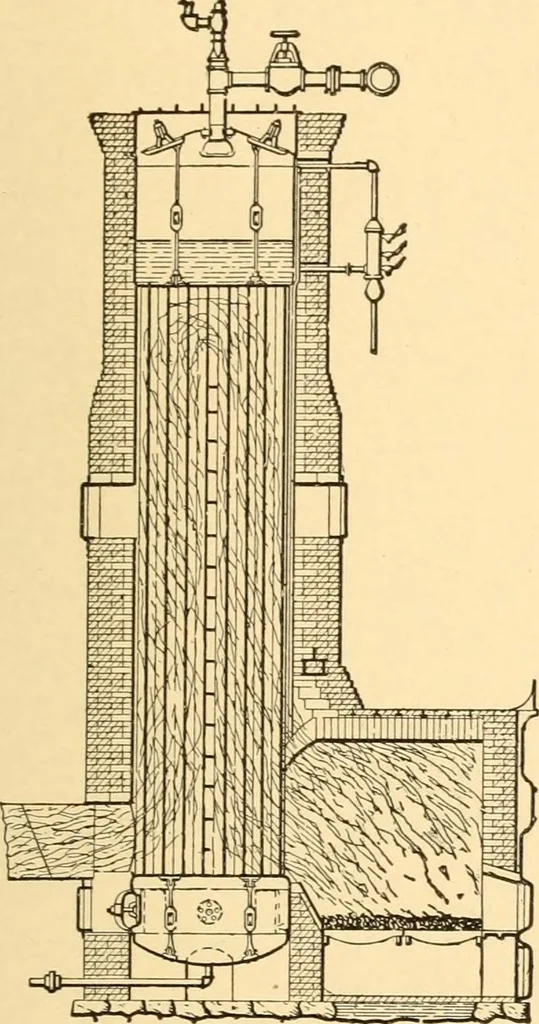

Arranged for utiHzing the heatfrom a puddling furnace.A most efficient econ-omizer of heat from anykind of furnace fromwhich there is sufficientwaste heat for generatingsteam. A diaphragmguides the heat to bestadvantage through thetwo sets of upright tubes. GENERATION OF POWER, STEAM. 55 … 80. VERTICAL WATER TUBEBOILER. Wood type. A furnacechamber at one side; an upper andlower tube drum with the tubes bankedin two sections, and a fire-tile partitionextended nearly to the top of the tubes.The only provision for circulation is bythe upward current in the fire side induc-ing a downward…
