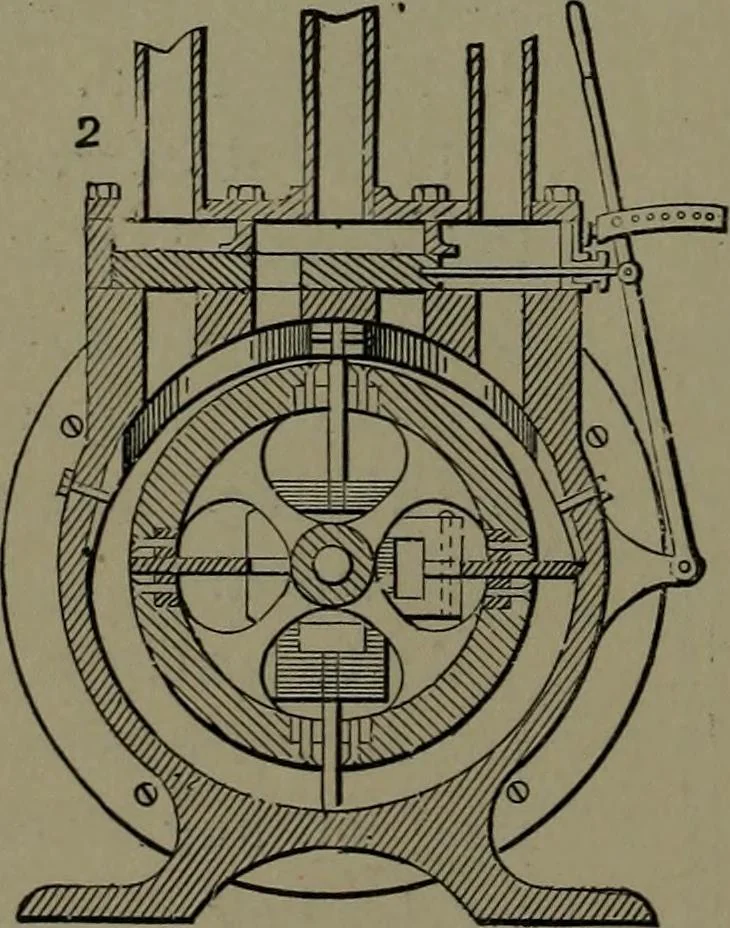

An illustration from Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries, 1914, leaf 107
g inward as theother moves outward, and vice versa. Theouter ends of the pistons engage the innersurface of part of the cylinder and partof an abutment in the cylinder. Theabutment is made in two parts, bolted attheir outer ends to the cyhnder, and con-nected with each other at their inner endsby… … STEAM POWER APPLIANCES. 105 250. ROTARY ENGINE. Harrington type. The disks have abearing surface of several inches on each other, preventing the passage of steam between them. An end elevation partlyin section, showing the piston A, and the abut-ment disk B, in position at the instant oftaking…
