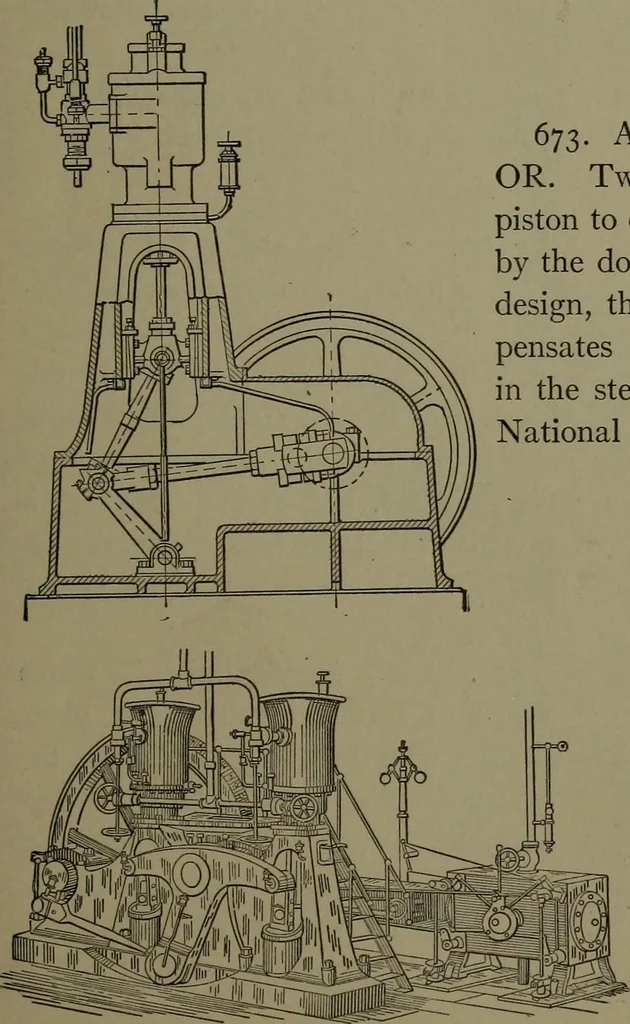

two sets of ratchet teethstanding in opposite directions, asshown, collars fitting loosely on the hubover the ratchet teeth, and pawls ful-crumed on the collars to engage theteeth, while a lever mounted to swingon a stud is connected by belts to armsextending outward from the pawls.The wheel with… … 673. AMMONIA COMPRESS-OR. Two strokes of a single-actingpiston to each revolution of the crankby the double-acting toggle. In thisdesign, the action of the toggle com-pensates the difference of pressurein the steam and ammonia cylinder.National Refrigerator Co. type. 674. AMMONIA COM-PRESSOR.…
