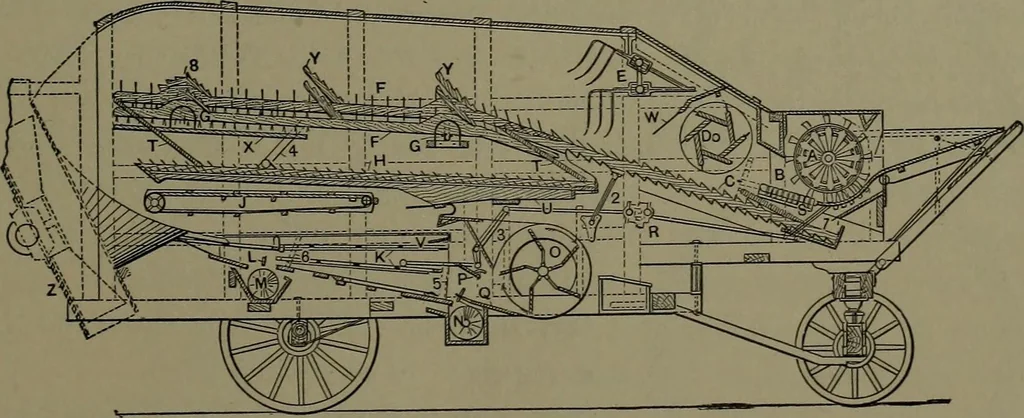

thrown on to the traveling apron, is carried over to the binder, whereit is bundled, tied, and dropped on the ground. 885. COMPOUND THRESHER. A threshing-machine study;Reeves type. A, beater drum ; B, separator ; C, carrier ; D, forwarder ; … E, push forks ; F, push rakes ; G, shaking cranks ; K, V, winnowsieves ; O, winnow fan ; M, N, grain chutes. 346 MISCELLANEOUS DEVICES. 886. REFUSE CREMATORY. The figure shows a sectional ele-vation of this destructor furnace in which i is the main combustion chamber, 2 the fire grate, thelower end…
