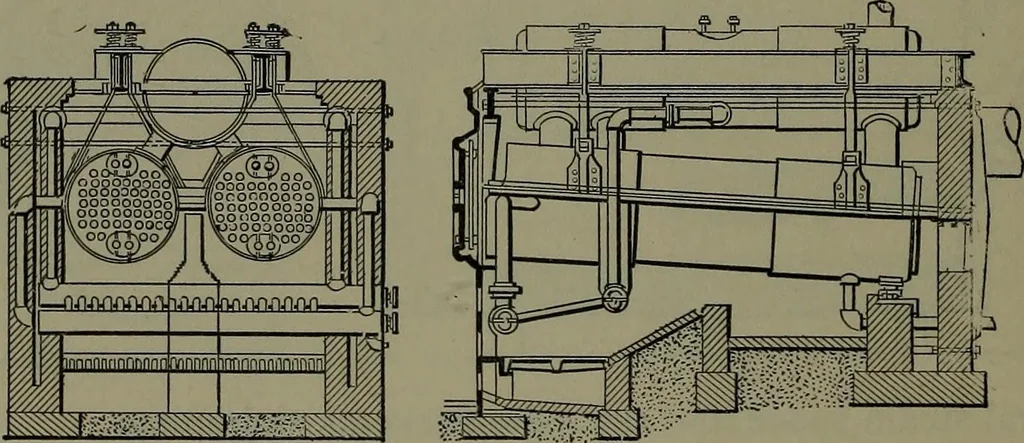

77. TRIPLEX BOILER. Fanning type with down draught grate.Shells are filled with tubes and with no stays. Top shell used for … steam space. Gases of combustion pass under lower shells throughthe tubes and back between the three shells. Water hne in uppershell. Large efficiency claimed.78. Section through boiler. 79. WATER TUBE BOILER.
