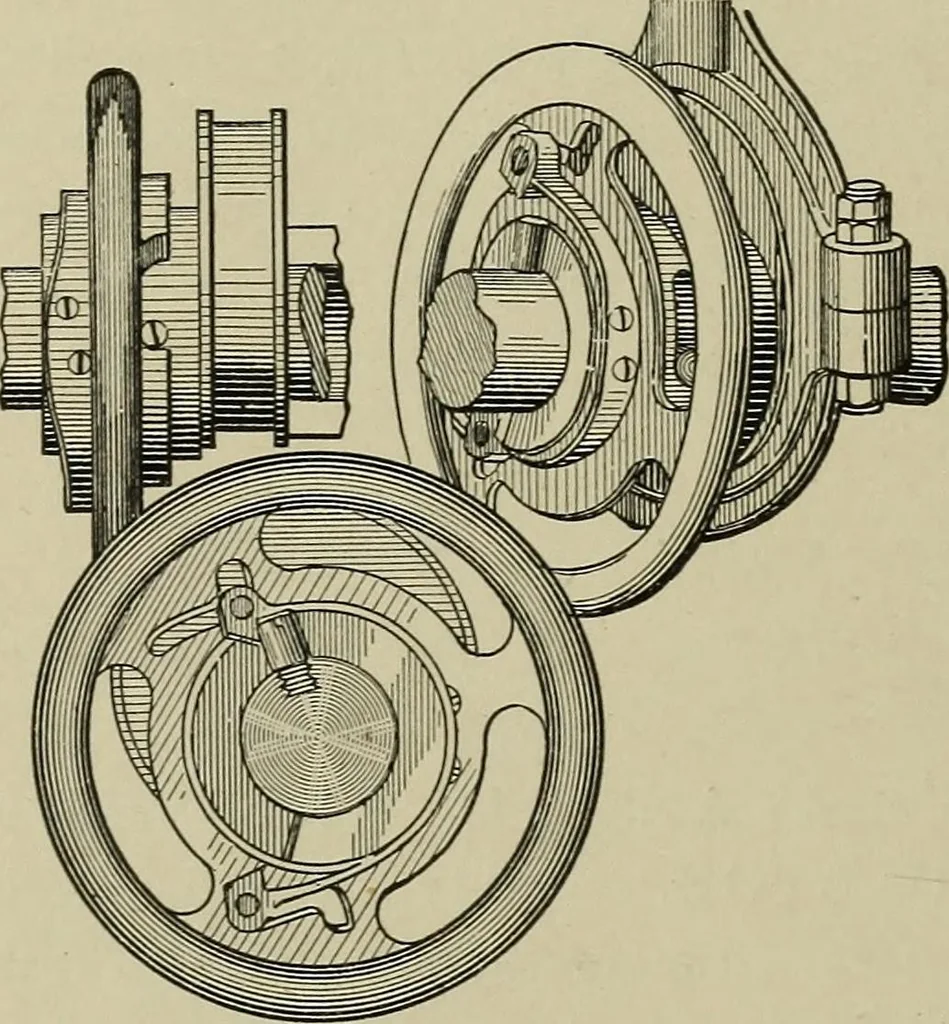

the application ofthe invention to an upright en-gine. The eccentric is formedwith a hub having shoulders toengage a stop pin on the shaft,in combination with an operatingwheel placed on the hub of theeccentric, and having a limitedrotary motion thereon. Theeccentric has a limited inde-pendent…
