Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices"; (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing company · leaf 125

An illustration from Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices";, 1917, leaf 125

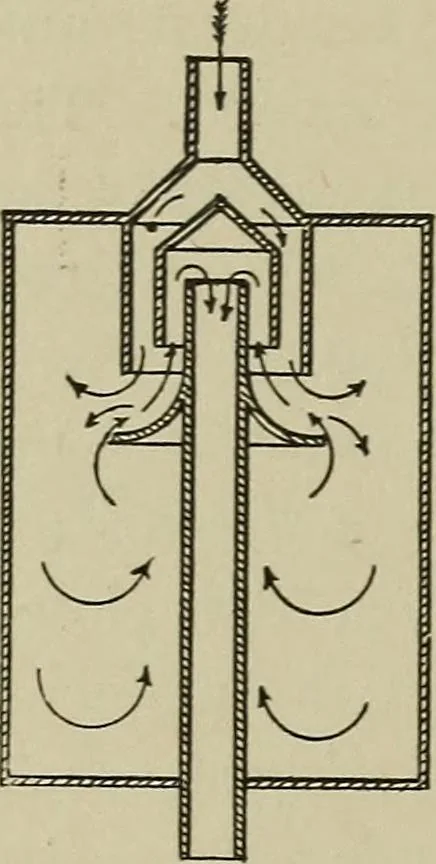

120 EXPLOSIVE MOTOR POWER AND APPLIANCES. … 280. MUFFLER FOR EXPLOSIVE MO-TORS. Thompson type. A cylindrical chamberwith a hooded spreading inlet pipe ; a deflector onthe exit pipe, by which the exhaust puffs are ex-panded in the cylinder and issue in a nearly con-stant stream. Other types of mufflers have strong wire gauze cyl-inders within…

Mechanical movements
