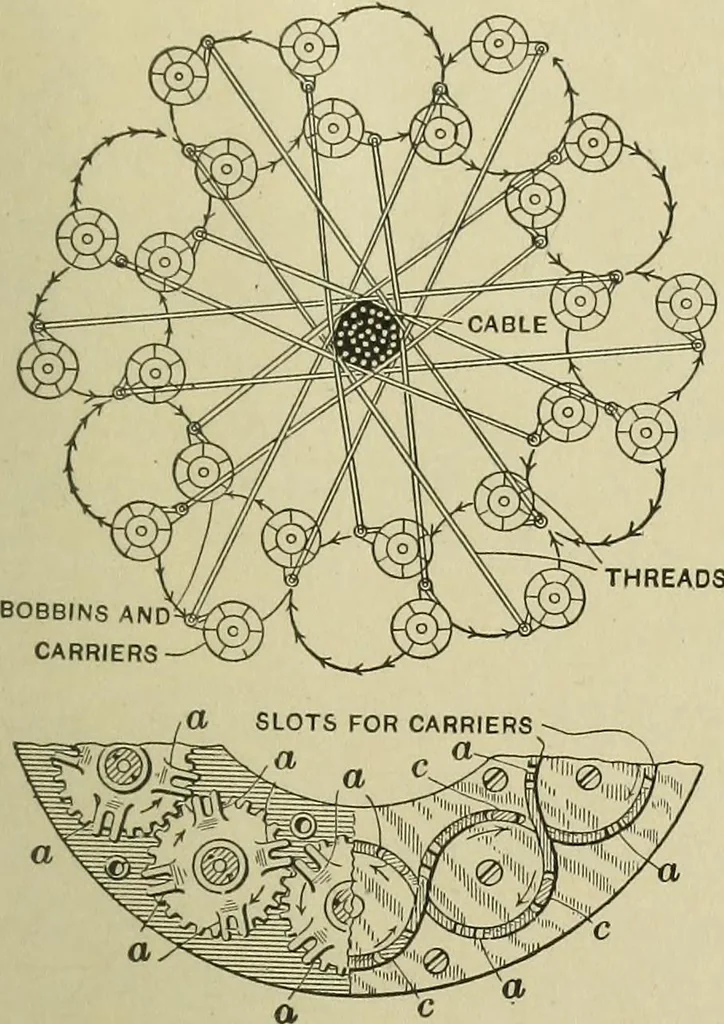

ELECTRIC POWER AND DEVICES. 167 … 397. CABLE COVER BRAID-ING MACHINE. Details of thebobbin motion, bobbin carrier gear,and slotted guide plate, a, a are theguide fingers on the gears that pushthe bobbins along the grooves, whichby their crossing grooves carry thespools out and inside each other. 398. Shows the gears beneath…
