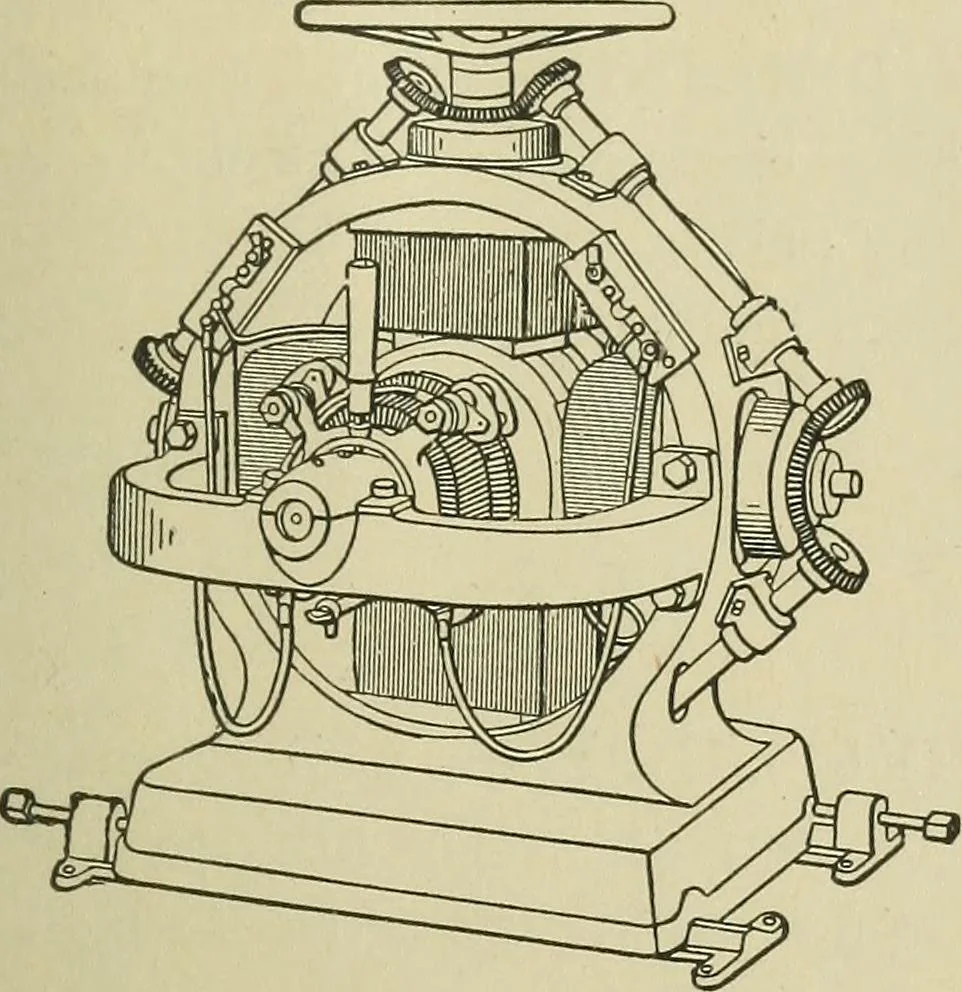

NT. Compound dynamo wind-ing. Shows the two ways of makingthe terminal connections of the wind-ings. Right-hand figure is shortshunt. 403. SEPARATELY EXCITEDDYNAMO. B, B are the brushesof the armature circuit to the linesM, M. The battery G supplies cur-rent to the field winding only, whichis… … 405. MULTI-SPEED ELEC-TRIC MOTOR. A handwheeland set of bevel gears draw thefield magnets away from the arma-ture for varying the speed by chang-ing their distance apart. Model ofthe Stow Mfg. Co.
