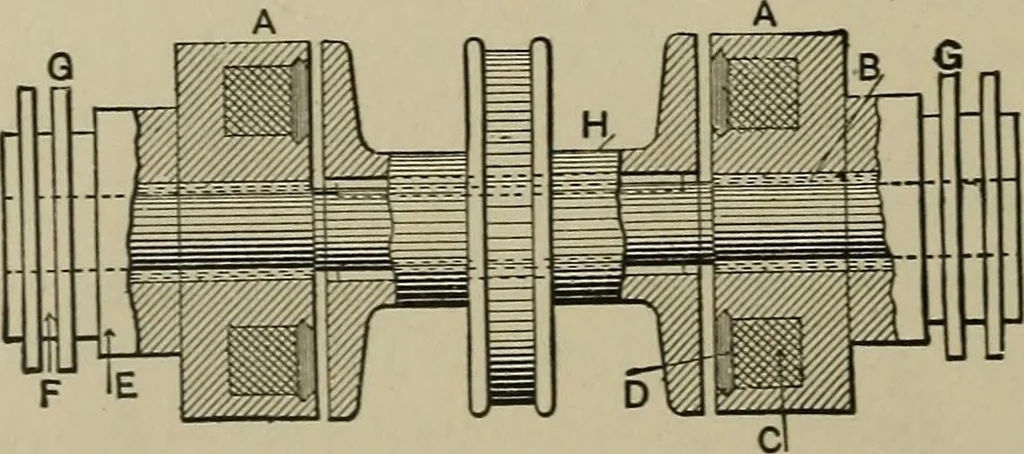

each pro-[iHiljL^nn vided with a brass bush B.The coil of wire C is placedin an annular groove in themagnet, and held in positionby a ring of lead D calkedinto a recess of the groove.An extension E of the magnet is turned down so as to make agear fit, and a further extension F takes the collector… … ELECTRIC POWER AND DEVICES. 179
