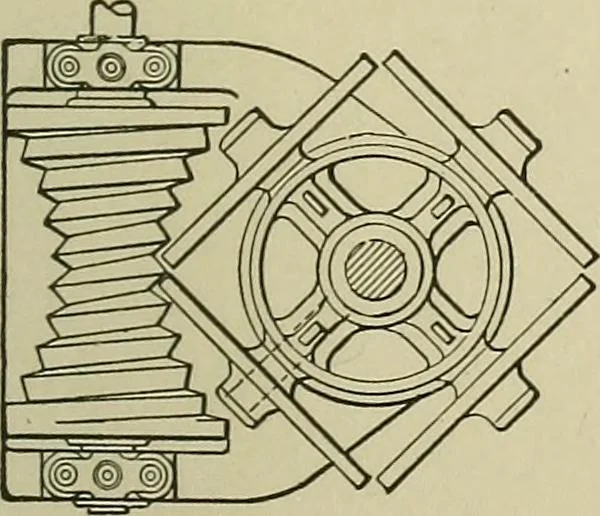

<?/;///;//////;av/;s^ Road Wheel Rail 509c. GYRO-CAR. Rotating End of _. , (Gyroscope Axie By the use of a doublegyroscopic arrangementit is possible for a rail-road car to run on asingle rail. The gyro-scopes keep the car fromtipping and they may bedriven by any suitableprime mover. Trunnions… … 600. NOVEL WORM GEAR. The threads of a spiral worm,instead of gearing into teeth like those of an ordinary worm wheel, actu-ate a series of rollers turning upon studs, whichstuds are attached to a wheel whose axis is notparallel to that of the worm, but placed at rightangles thereto. When motion is…
