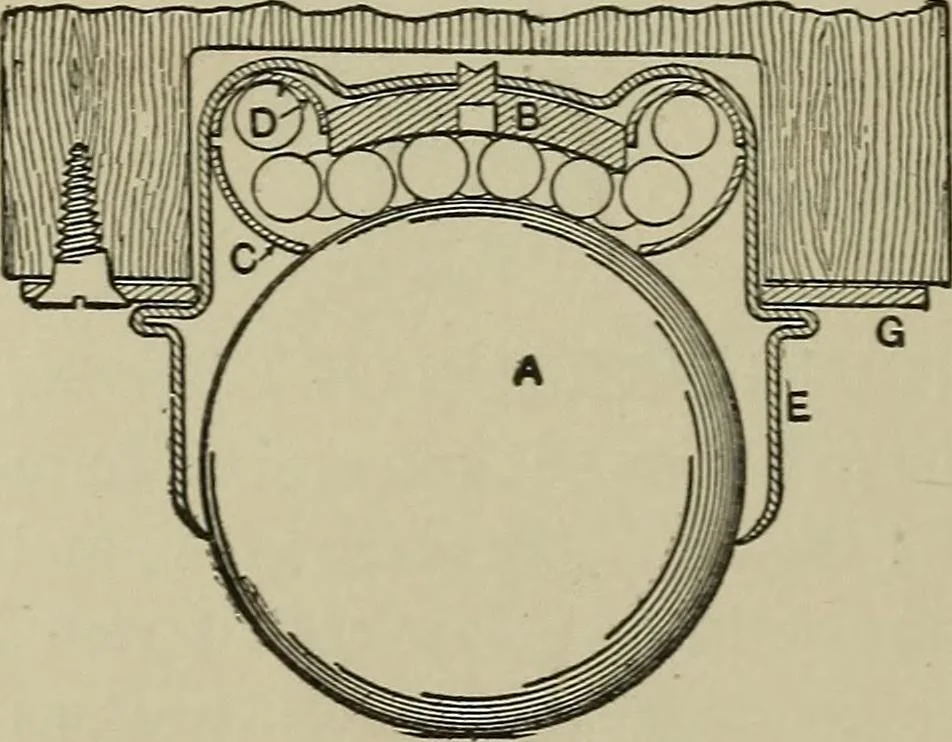

660. BICYCLE BALL BEARING, with hourglass separating rollers. The balls havethree points of pressure contact, two on thecone and one on the cup. The separating rollers are carried by aguide ring frame. … 661. BALL-BEARING CAS-TOR. The rolling sphere A isheld in position by the sheet met-al case E. About 40 small ballsare arranged to circulate under thebearing plate B, guided and heldin place by the case C. The ballstraverse around the annularspace D. 662. SPRING MOTOR. A series of coiled springs…
