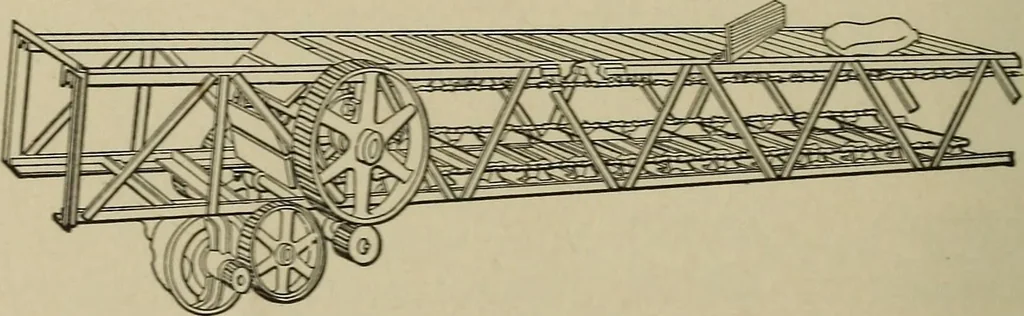

An illustration from Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices";, 1917, leaf 29
bagsare delivered from a car door on to agrating through which the forked handsof the elevator picks them up and dis-charges upon an inclined chute gratingto slide to a horizontal carrier from whichthey are deposited at any desired place.The forked hands are braced loosely tothe sprocket chains,… … by dumping them off the side at places where the inclined guideboard is set
