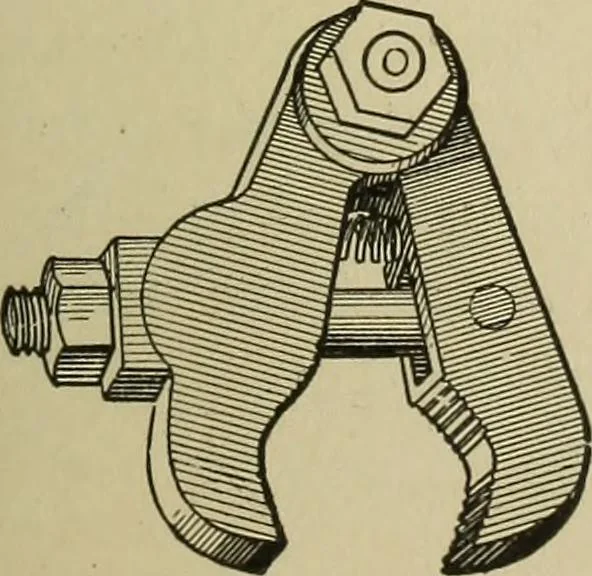

742. SUSPENDING GRIP in a shaft or betweentimbers. The toothed sectors, a, grip the rock ortimbers. The upper figure is for a definite sizedopening with a pivoted clevis at c. 743. The lower figure for a variable sized shaftor opening. The toothed arms, h, h, and lockingclevis makes a convenient… … 744. UNIVERSAL DOG. Easy to apply toall kinds of work to which it is applicable. Has agreat range of size and a good grip. 287 288 MILL AND FACTORY APPLIANCES AND TOOLS, ETC. 745. DRILL CHUCK for small drills. A section. By revolvingthe knurled nut the jaws are moved outward or inward in the…
