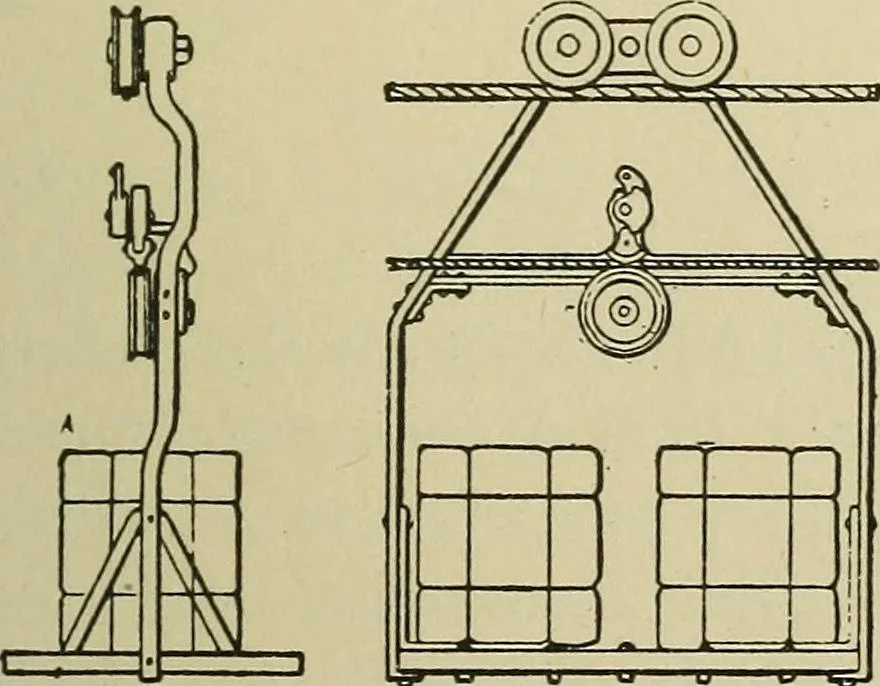

13. TWO WAY CON-VEYOR. Method by which arope and disk conveyor can bemade to change its direction.For grain, gravel, sand, clay,and other loose material. … 14. ROPE TRAMWAY CAR-RIAGE. Bleichert System. Theupper rope is the bearing cable andtrolley, the lower one is the haulingrope with the grip device attachedto the car frame. The pull of alanyard starts or stops the car. 15. Shows a side view of theopen car frame and grip cam. 16. FRICTION PULLEY.…
