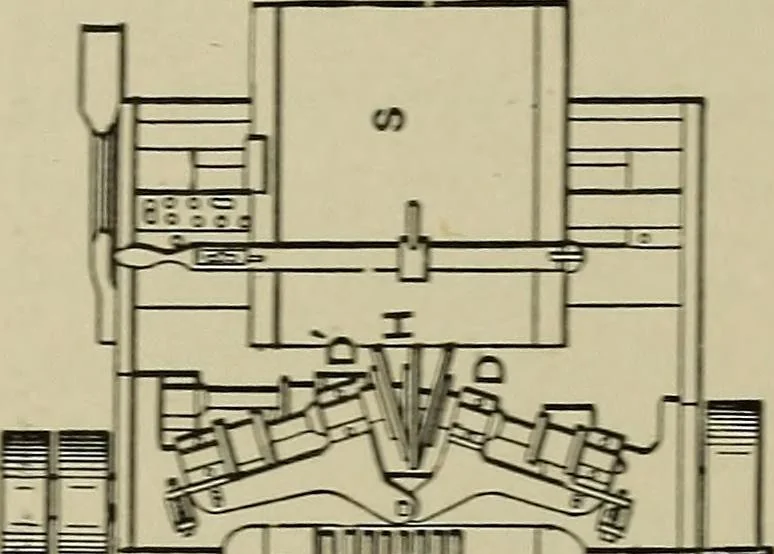

anks, b, bf, havingnumerous perforations in theirsides next to the plate. By pull-ing a cord, c, the valves, d, d, areopened, and salted water from thereservoir, e, descends through thepipes, i, i, into the tanks, playing injets against-both sides of the plate ;a pump returns the water from… … 797. DOVETAILING MACHINE. Plan and elevation of a ma-chine in which the work is done by a gang of saws on a mandrel. The mortise-cutting portion is the right-handpart of the lower hgure. In it the board issecured on the carriage, 5. in such posi-tion that the edge of said board projectsunder the…
