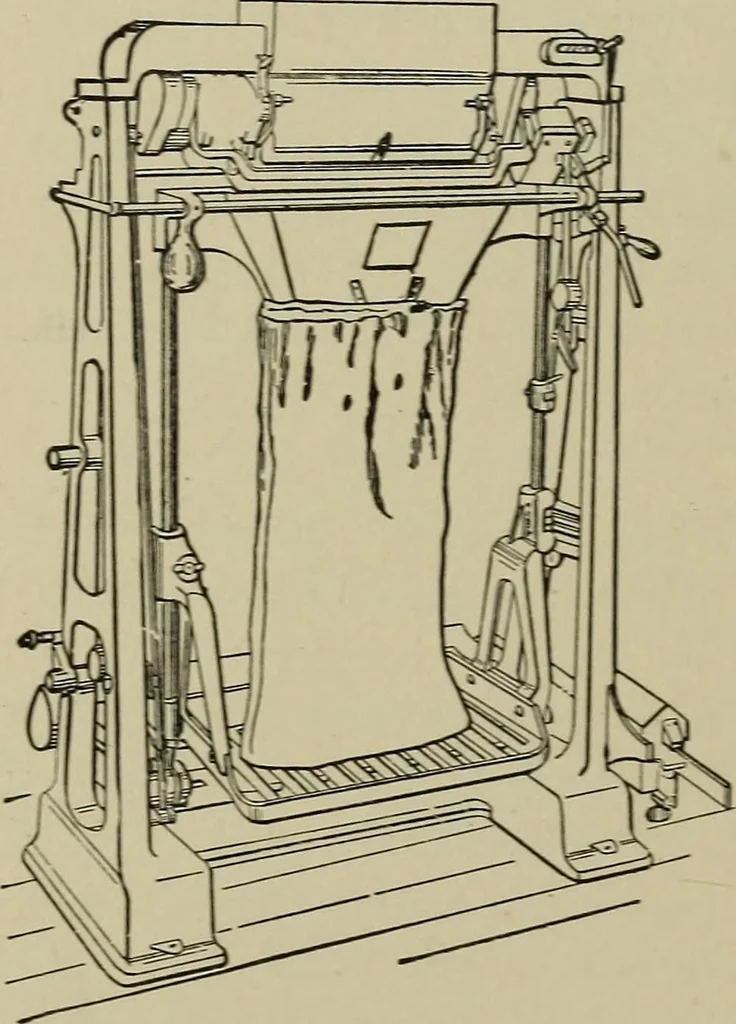

805. BAGGING AND WEIGHINGSCALES. A tripod on which is fixeda Roman balance with an extension yokeand funnel to which the bag is attachedby a band and clips. The beam of thebalance is made to counterbalance theyoke and funnel, and the tare of the bagis placed on the hook at the end of thescale beam.… … 806. AUTOMATIC BAGGING AND WEIGHING MACHINE.The bag is attached to the hopperfunnel with its bottom resting onthe grated weighing platform. Thefeeding valve is then opened andconnected by an automatic latchto the weighing platform, whichdrops at a set weight of filling, dis-engaging the latch, when…
