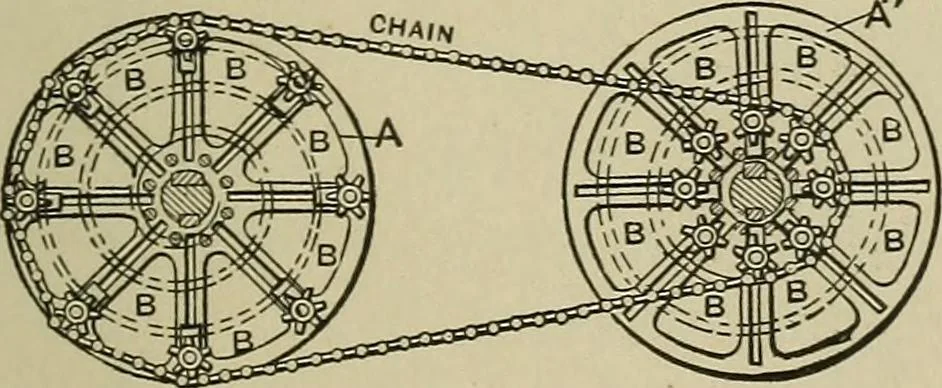

22. VARIABLE SPEED DEVICE. The wheels A and A areeach made up of two disks mounted on a shaft and carrying between them small toothed pinions, B B B,and B B B, which are mountedon roller clutches. The bearingsfor the pinions are arranged tomove radially in the slots shownin the plates, so that the…
