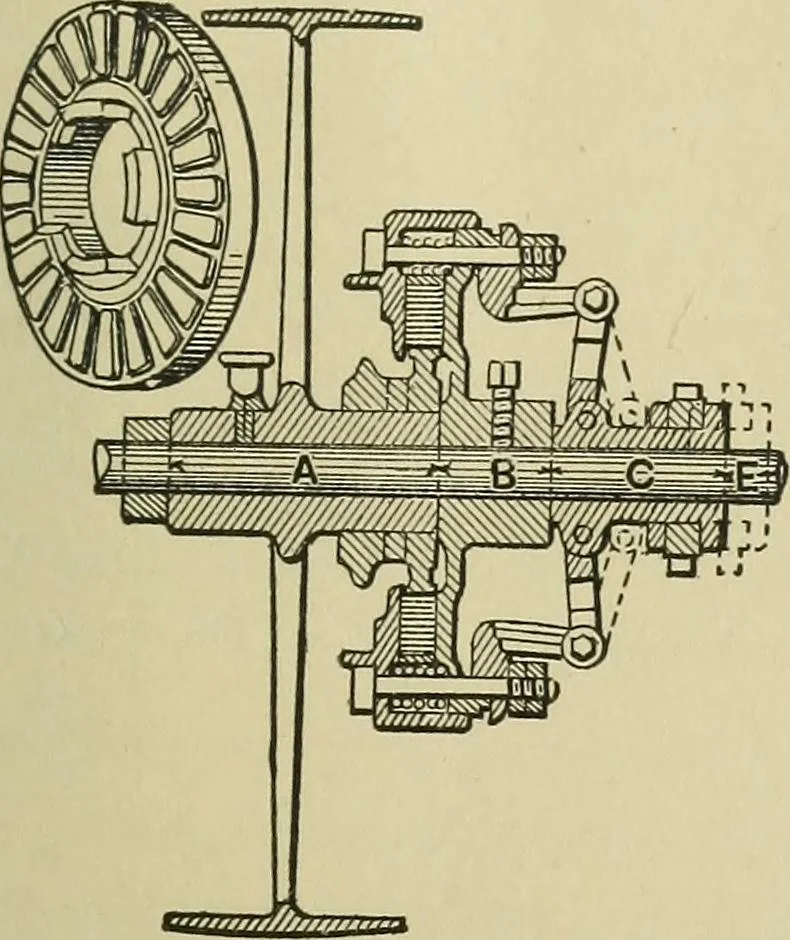

25. PANEL CLUTCHES.Simpson type. A silent clutchthat prevents back movementand takes up a forward motionwithout the jerk of a ratchet andpawl. Lseful on agricultural im-plements, sewing-machines, etc. 26. The under figure repre-sents a triangular quick-actionpanel applied on the same prin-ciple as… … 27. FRICTION PULLEY. Upon the hub of the pulley is keyed a collarwith lugs on one side which engage withlugs on the friction disk; this causes thedisk that fits loosely on the hub of thepulley to revolve with the pulley, and atthe same time leaves the disk free to vi-brate sideways if necessary.…
