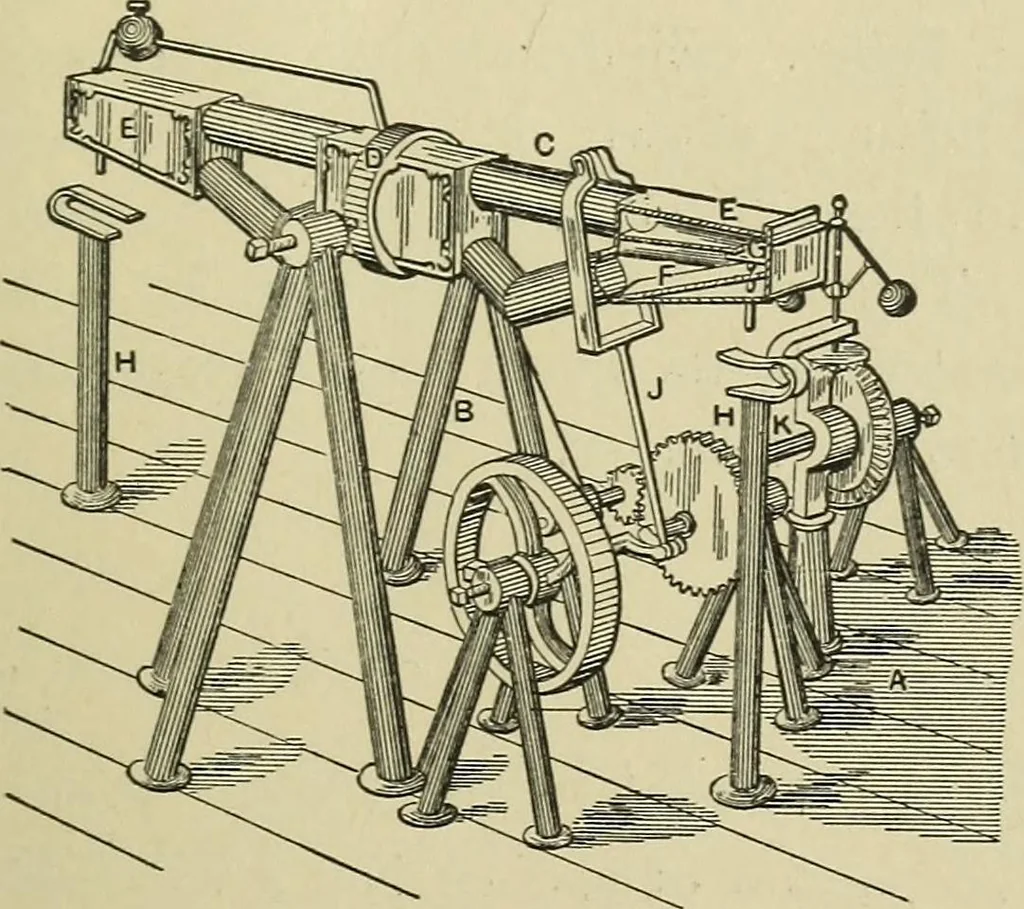

An illustration from Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices";, 1917, leaf 378
pitman, J, to a crank and fly wheel, contains a longstraight tube at the top andtwo double inclined tubesbelow. A ball rolls along theupper tube by gravity in syn-chronism with the revolvingwheel and axle, so that its mo-mentum just carries it to thedrop valve and incline at F asthe crank reaches… … 933. PERPETUAL MOTION. Tilting tray and ball. Thisinvention consists in the arrangement of an annular tilting tray, which forms the orbit for a revolving ball,in combination with a supportingplatform, and with a lever which ex-tends into the tray and connects witha shaft, to which motion is to be…
