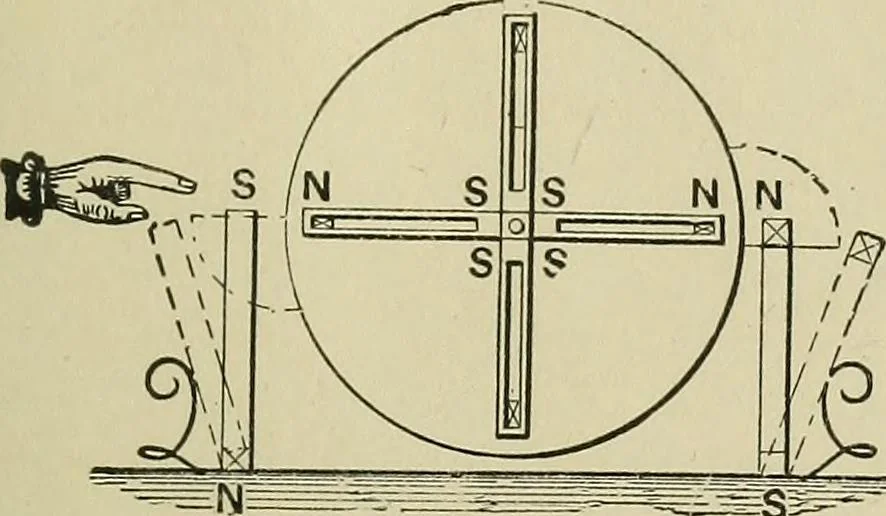

PERPETUAL MOTION. 389 968. PERPETUAL MOTION. Alternate magnet type. The swing-ing of the outside magnets of oppositepolarity. Alternate the attraction andrepulsion of the magnets on the wheelto generate power to swing the outsidemagnets in and out of their sphere of_*2\I v--JL-^/^ |i/^o action.… … 969. PERPETUAL MOTION. Electro-magnetic type. In theengraving, A represents a frictional electrical machine ; B, a crank ; C, an electro-magnet; D, wire con-ductors ; F, a trunnion; G, anarmature ; E, a circuit closer ; H, apitman ; I, an insulating substance ;and J, a spiral spring. The device is…
