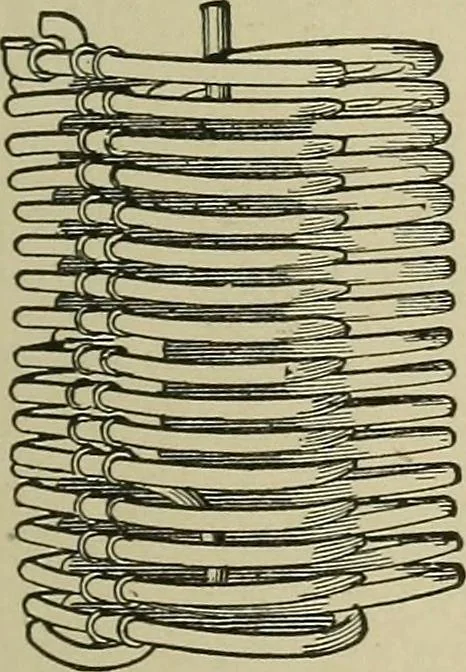

80. VERTICAL WATER TUBEBOILER. Wood type. A furnacechamber at one side j an upper andlower tube drum with the tubes bankedin two sections, and a fire-tile partitionextended nearly to the top of the tubes.The only provision for circulation is bythe upward current in the fire side induc-ing a… … 81. FLASH COIL BOILER. Made withtwo open coils of iron pipe interlocked so thatthe central space is occupied by a useful steam-generating surface. This form gives a large generating surface in asmall space.
