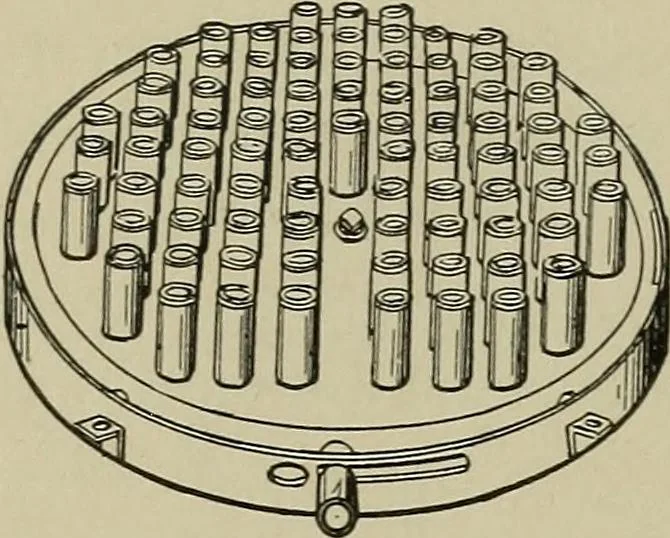

Plan and section of the crude oilburner used on theSouthern Cali-fornia Railroad.This burner hasbut two chambers, oil andsteam; the air enters the fur-nace through graduated open-ings around the burner. 103. Mouth of burner. 104. Plan of burner. 62 GENERATION OF POWER, STEAM. … 105. BURNER FOR AUTO-BOIL-ER. The disk chamber is stamped out ofplate iron. The interior air tubes arescrewed into the back head and furnish au-to complete combustion. The outer tubesare screwed into the top plate and furnishan annular stream of vapor gas from thechamber below. 106. AUTOMOBILE…
