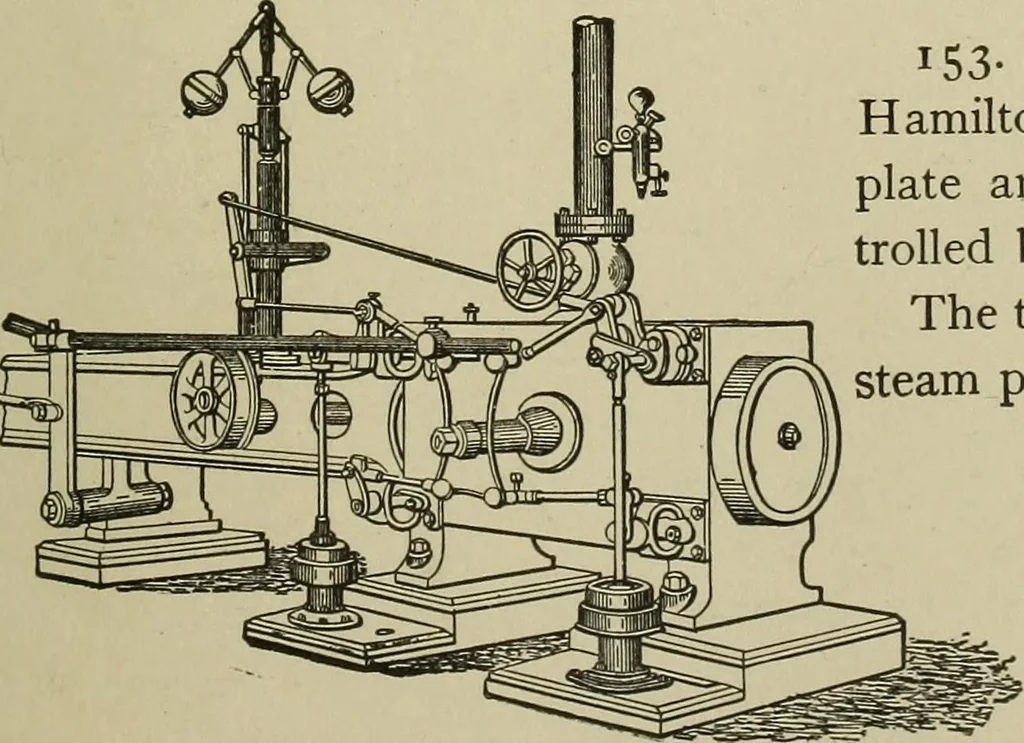

152. CORLISS EN-GINE. C. & G. Coopertype with double wrist plate.The governor controls theaction of the steam valvesby adjustable trip hooks anddashpots. … 153. CORLISS ENGINE.Hamilton type, with single wristplate and trip-valve gear con-trolled by the governor. The type of most economicalsteam power. 73 STEAM POWER APPLIANCES. 154. CONVERTIBLE COMPOUND ENGINE. Flinn type forautomobiles. Steam enters at the center of the high-pressure steam valve, and…
