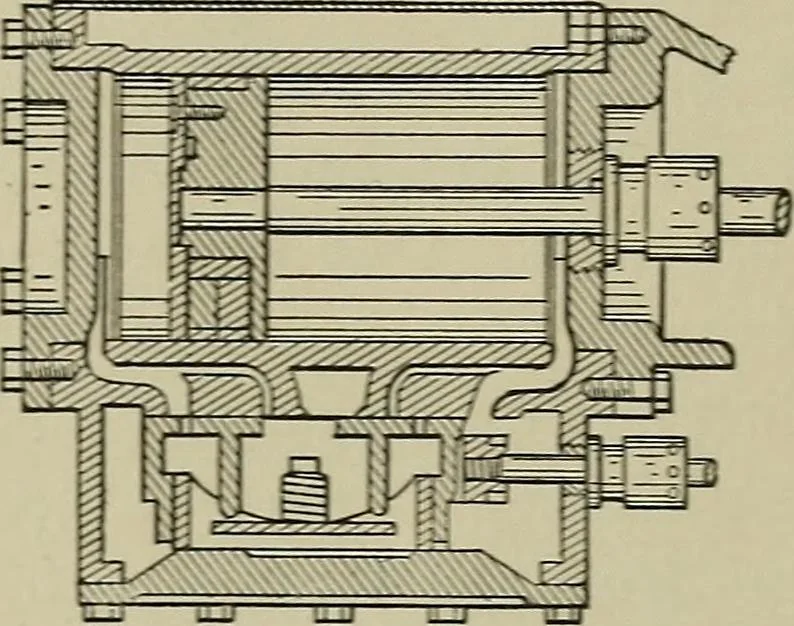

84 STEAM POWER APPLIANCES. 172. TYPES OF SLIDE VALVES. Slide valve of the Brownell engine. The valve is of the box type, double-ported for both steamand exhaust, and practically perfectlybalanced. The steam pressure is re-moved from the back of the valve bymeans of a balance ring which bearsagainst… … / o- Hfl T T1 r] c ?-7-r.- 1 — W^i : j liWp o Wr - :; —3 t;—- CONCENTRIC VALVES. CORLISS TYPE. This valve,although essentially of the u Corliss class, differs from the ordinary in that the steam valve is inclosed in theexhaust valve, making practically onlytwo valves, which, however, perform…
