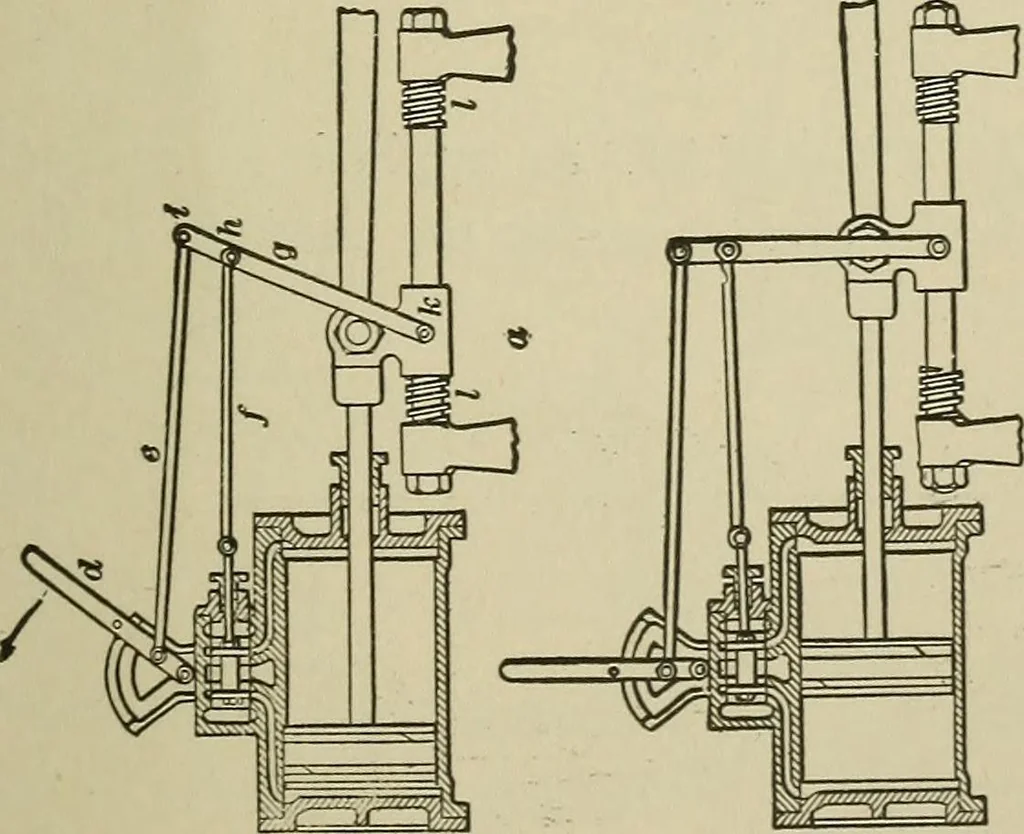

An illustration from Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices";, 1917, leaf 98
leverswings around ^asa fulcrum,and the valve is forced to theleft. This valve is an indirectvalve, that is, it takes steam atthe center and exhausts pastits outside edges—just the reverse of the ordinary D slide valve. Thelower end of the floating lever moving with trie crosshead, it tends toswing… … 94 STEAM POWER APPLIANCES. movement of the reverse lever, buffer springs /, / are provided, whichgradually bring the moving parts to rest. In both gears shown, suitable stops in the valve chest prevent thevalve from being moved beyond the positions required for a full open-ing of the ports. 206.…
