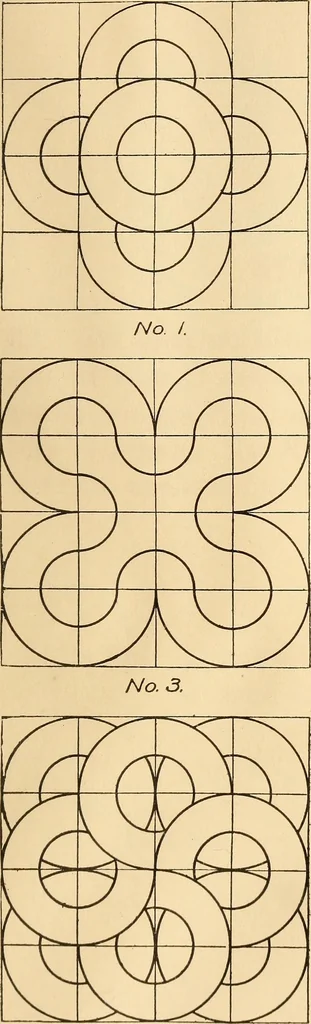

centers, draw semicircles with a U radius abovethe horizontal hne. Below the horizontal line drawsemicircles about points E and G, using a U radius. EXTRA PLATE Draw a Ti square in the center of the sheet, andwork out one of the figures shown on page 87. Thecenters for the arcs are determined by…
