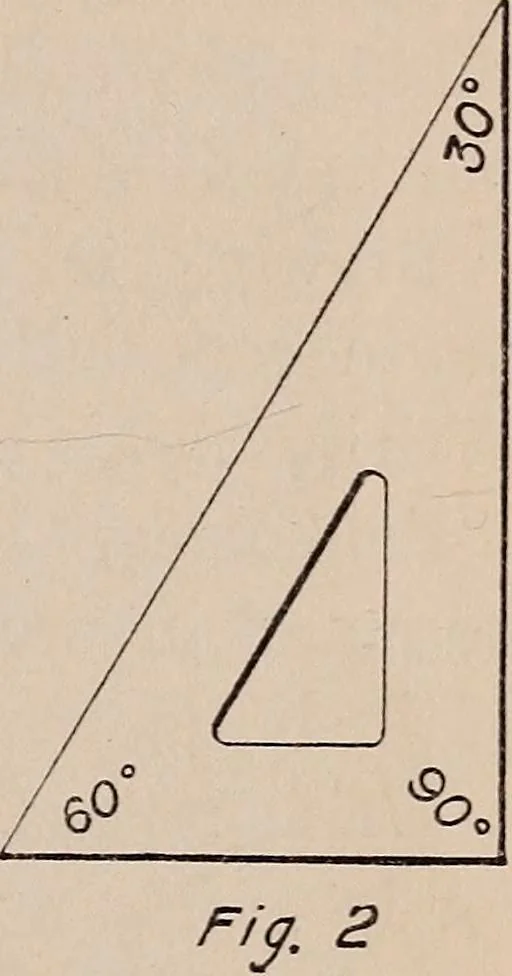

Set of drafting instruments Drawing-board—The drawing-board should bemade of soft pine with the left or working edge, theone against which the head of the T square is rest-ing in.Fig. 1, perfectly straight. Care should betaken to use the same side of the board each time,and to have the working edge… … Fig. 1, with the blade extending across the paper.The blade is used as the ruhng edge. 30 °-60 ° triangle—The angles formed by the edgesof this instrument are 30°, 60°, and90° as shown in Fig. 2; hence thename, 30°-60° triangle. Usuallyonly one of the angles is used inreferring to this triangle and…
