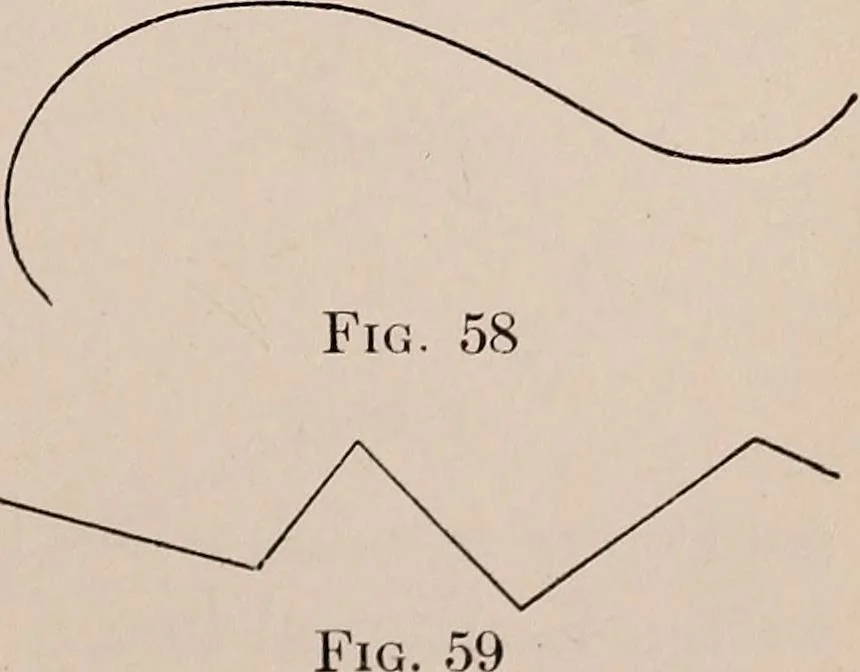

An illustration from Mechanical drawing; working drawings, 1911, leaf 176 — a point and hasdimension in length only. (In drawing a line witha pencil, the successive positions of the pencil pointproduce the line.) Lines may be straight, curved, broken or mixed. A straight line is a linewhich has the same di-rection throughout its en-tire length. See Fig. 57.quently called a… … 166 MECHANICAL DRAWING
