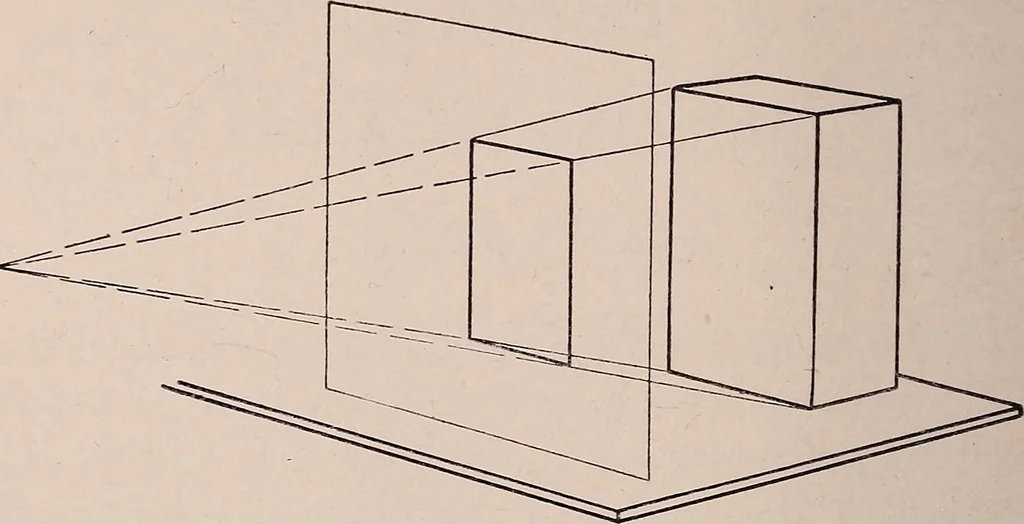

their true length in the drawing,while all lines back of the picture plane will be short-ened. This foreshortening of lines with the in-ability to measure them, makes the perspectivedrawing of very little value to the workman. In making the working drawing or mechanicaldrawing, we consider that all… … Fig J 4
