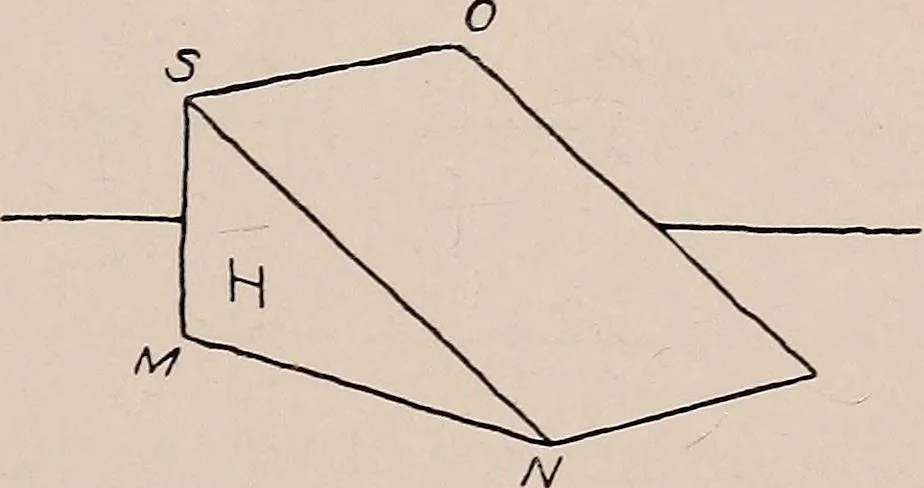

triangle with base M Nand altitude N S. Theside view would be a rectangle with the horizontal di-mension equal to S 0, and the vertical dimensionequal to N S, which is, of course, the same as the ver-tical dimension of the front view. The top view wouldhave for its horizontal dimension the distance… … ^9. O^ 54 MECHANICAL DRAWING of the side view. (See Rule 3, page 35.) Thesethree views are shown in Fig. 35. The top view does not show the exact size of the o ss S O ^^^ ft 1 g. 35 N obhque surface of the wedge, that surface being fore-shortened due to the fact that the hues of sight pro-ducing…
