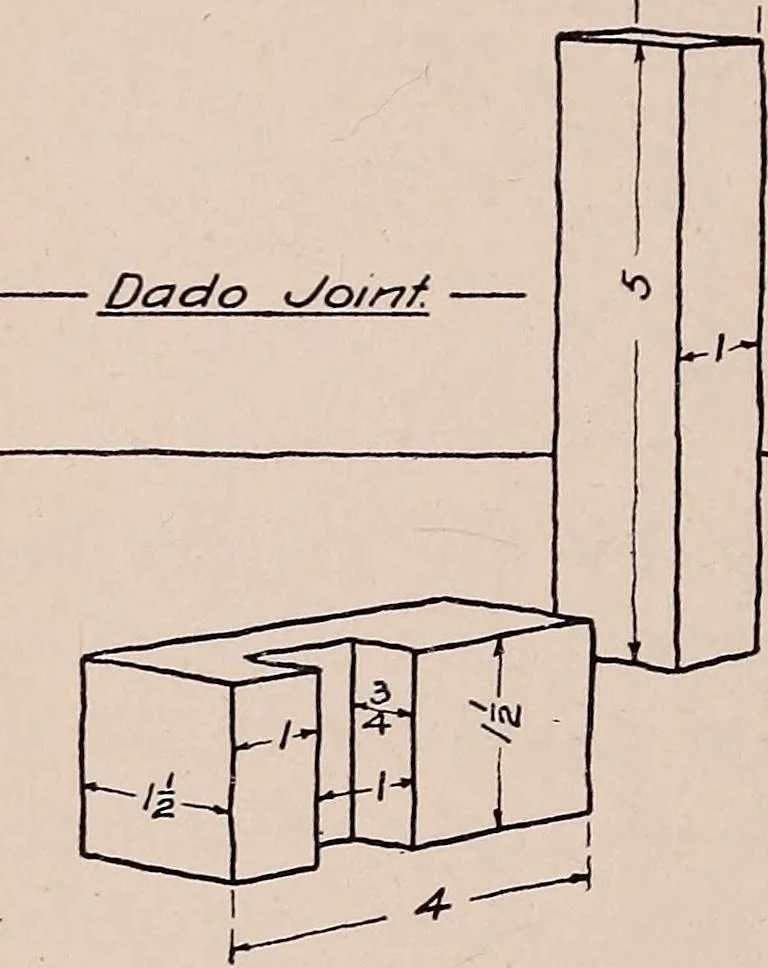

rectangles on pages 70 to 73 areshown perspective drawings of parts of differentwoodworking joints. Make three views—top, front,and right side—of two of these problems. Whenmaking the drawings, show the constructions clearly,and choose the views showing the fewest dotted lines.Leave about V^… … Mitre Joint
Mechanical drawing
