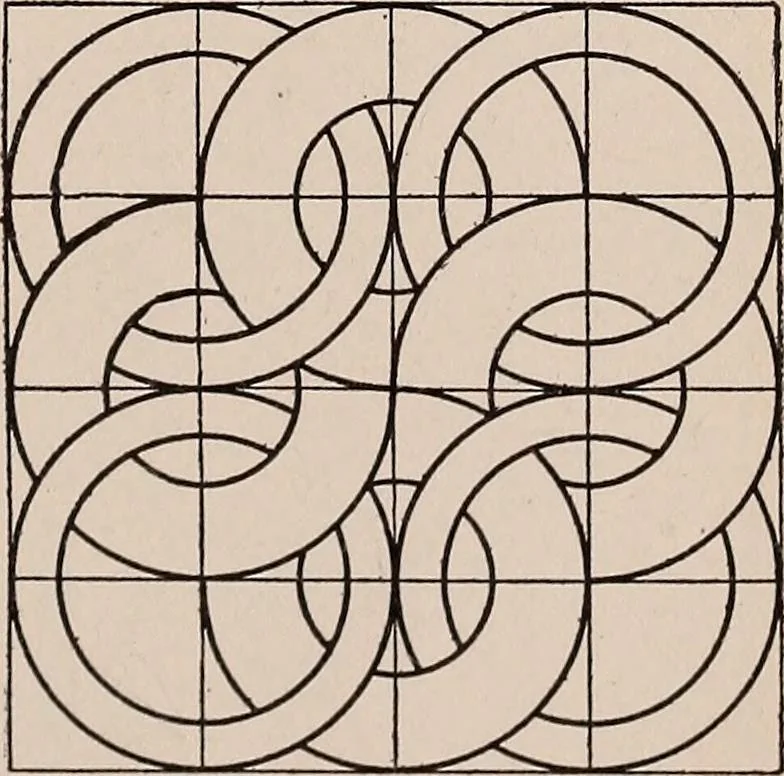

No. 4. No. 5. No. & Plate 7. Extra Plate … EXTRA PLATE Draw one of the figures shown on page 89. Allthe fines radiating from the centers C may be ob-tained by using the triangles on the T square, eithersingly or in combination. Work carefully andaccurately. Do not put the dimensions on thedrawing. INKING Ink only the heavy lines of the…
