Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 156

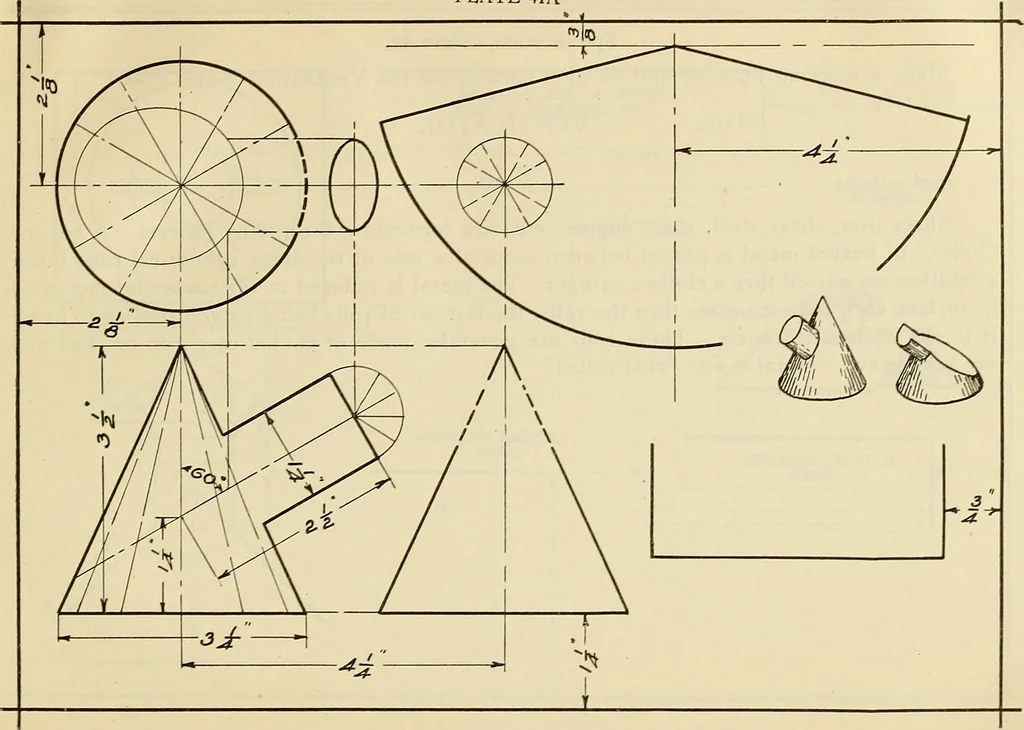

152 MECHANICAL DRAWING PROBLEMS Specification—Plate 41A. Make a drawing of a Cone intersected by a Cylinder as indicated. Develop the line ofintersection in the top view and from it the line of intersection in the front view. Developpatterns for the cone and cylinder. Scale I2=i. Title:— CYLINDER… … 154 MECHANICAL DRAWING PROBLEMS Specification—Plate 42.Make a working drawing and develop pattern for the Ventilator. Scale 3=i. Title:— VENTILATOR SCALE DATE NAME Sheet iron, sheet steel, sheet copper, etc., are formed by the rolling process. A bar, orbillet, of heated metal is passed between…
