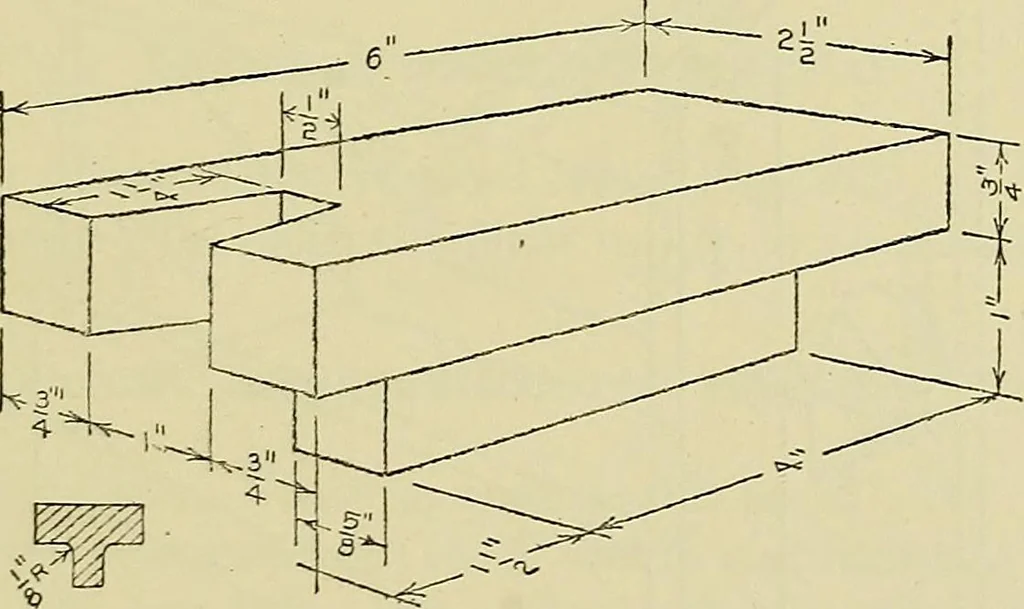

B DETAILBRACE JOINT !■- I^-I SCALE-FULL SIZE Fig. 147. Type Problem. Detail of Brace Joint … Fig. 148. Vise Anvil DATA FOR DRAWING PLATE U Given: Perspective sketches, Figs. 148, 149, 150, and 151.Required: To draw an orthographic sketch of the object
