Mechanical drawing for secondary schools (1916)

Crawshaw, Fred D. (Fred Duane), b. 1874, Phillips, J. D. (James David), 1869- joint author · Chicago, New York, Scott, Foresman and company · leaf 153

An illustration from Mechanical drawing for secondary schools, 1916, leaf 153

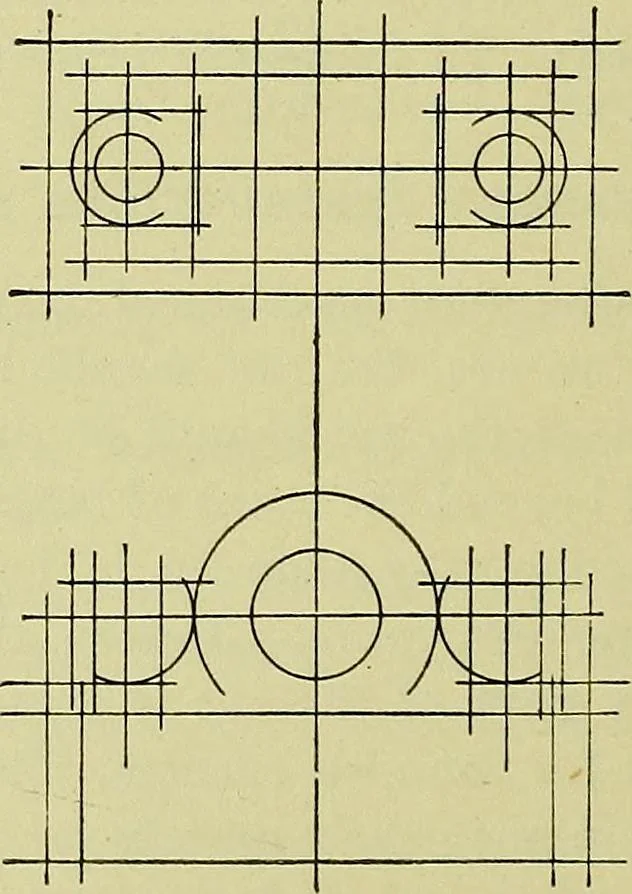

Fig. 154, Type Problem. Perspective of Bearing … Fig. 155. Type Problem. Constructive Stage of Mechanical Dravping

Mechanical drawing
