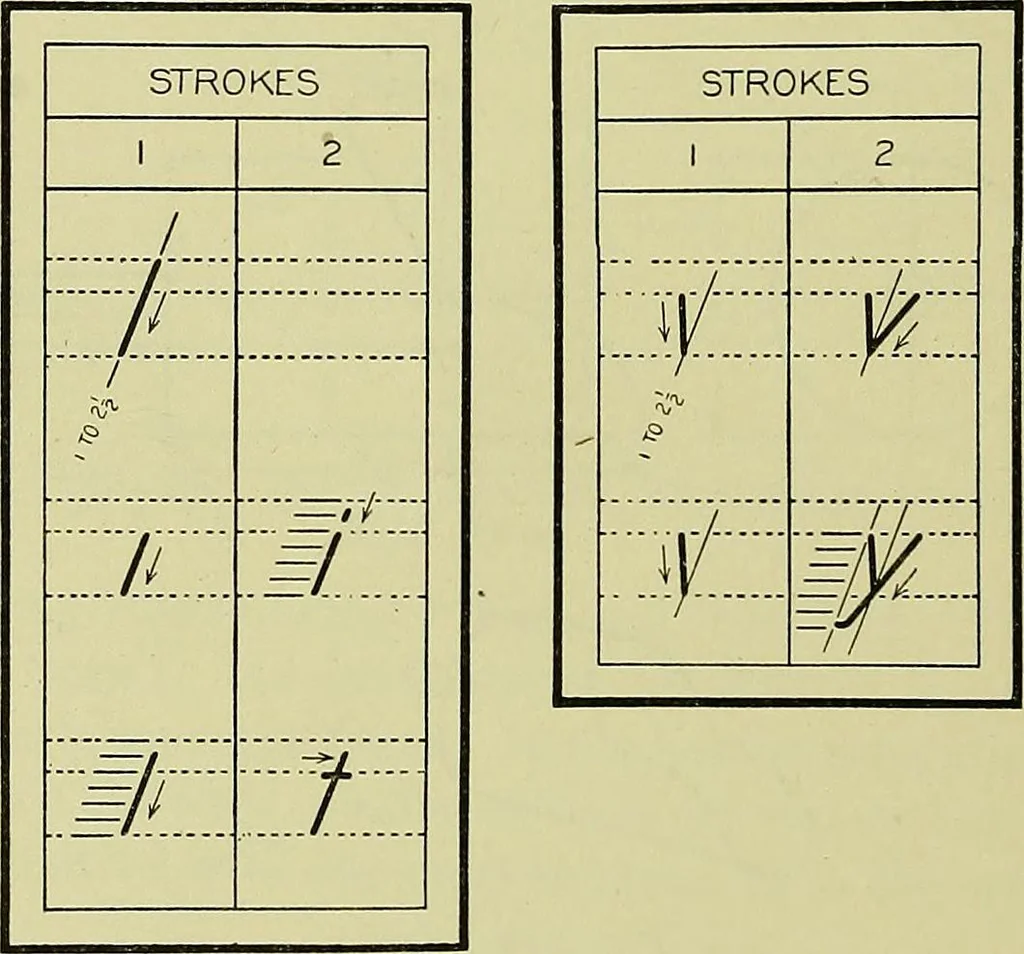

Fig. 217. Five Piece Elbow … Fig. 218. Lettering Plate. 1, i, t, v, y letters in the words. Correct spacing is as essential as correctforms. ADVANCED DRAWING 203 Given: Plate 27 to reduced size. Fig, 219.Required: To make the plate to an enlarged scale. PREPARATORY INSTRUCTIONS FOR DRAWING PLATE 28 Another geometrical form…
