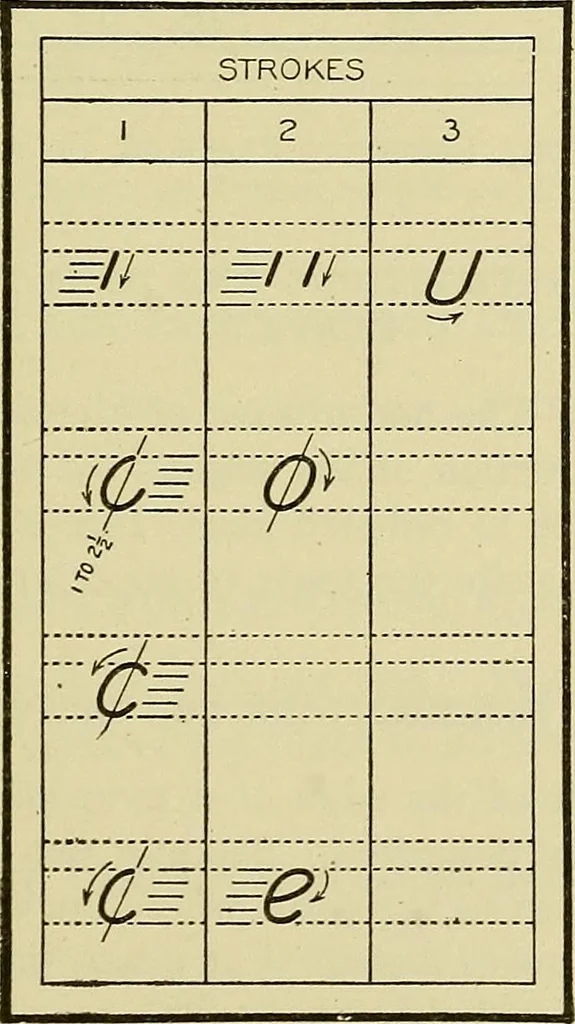

Fig. 234. End for Grain Conveyor, … Fig. 235. Lettering Plate, u, o, c, e 214 MECHANICAL DRAWING Required: To draw a pattern for the object shown in Fig.234 or any similar object as assigned by the instructor. Instructions: Draw the orthographic views and make a con-struction for the pattern similar to that shown in Fig. 233. 1…
