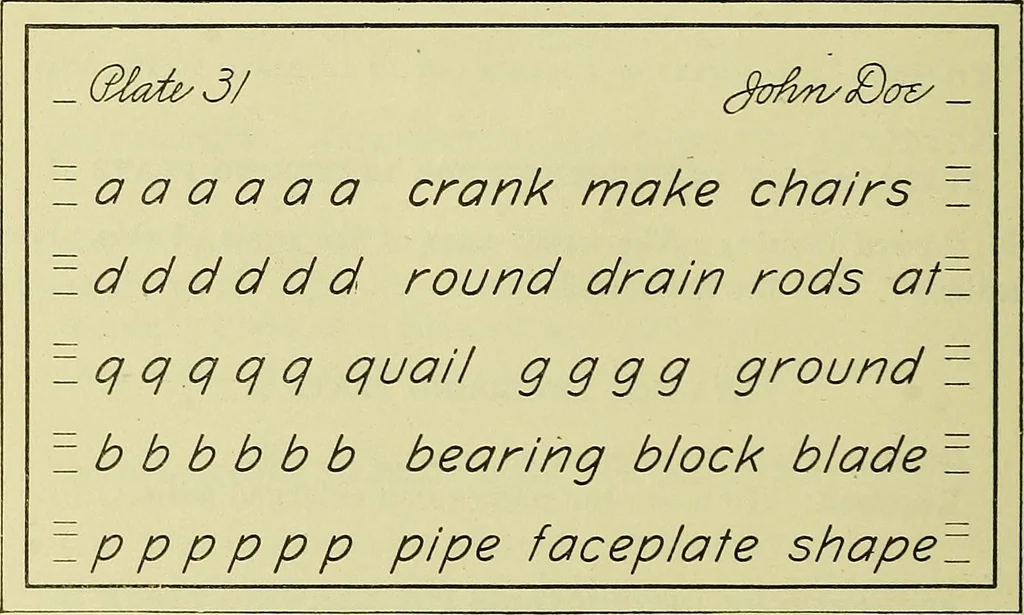

Fig. 238. Lettering Plate, a, d, q, g, b, p, s … Fig. 239, Lettering Plate 31. a, d, q, g, b, p, s the surfaces of two solids meet or intersect. An example of theintersection of two prisms is afforded in the case of the roof of ADVANCED DRAWING 217 a house, as shown in Fig. 240. The line of intersection is the lineabc where the roofs meet. It is…
