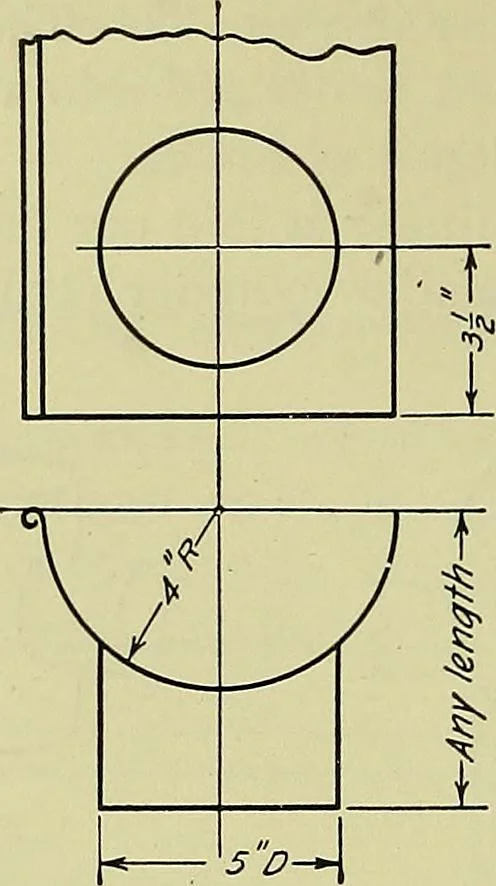

ger cylinderthrough these points. The spacing of these elements is obtainedby stepping off the arcs ab, b c, etc., Fig. 245, between the pointsrepresenting these elements in the end view (top view in thiscase) of the cylinder. DATA FOE DRAWING PLATE 33 Given: The orthographic views of the objects…
