Crawshaw, Fred D. (Fred Duane), b. 1874, Phillips, J. D. (James David), 1869- joint author · Chicago, New York, Scott, Foresman and company · leaf 231

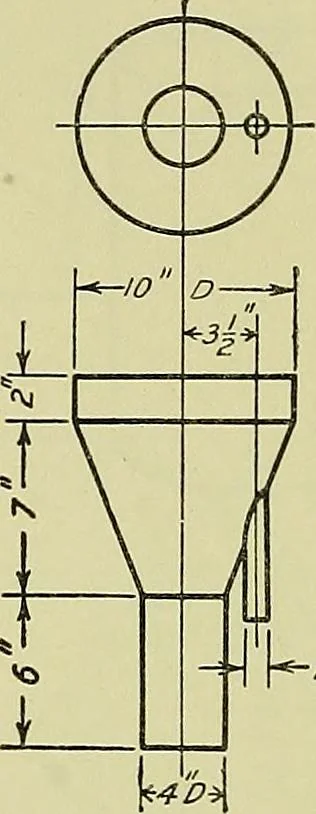

and 251. 226 MECHANICAL DRAWING Required: To draw the orthographic views and make aconstruction for the pattern of the objects shown in Fig. 250,251, or any similar object as assigned by the instructor. Instructions: The fact that the cylinder in Fig. 250 is largerin proportion to the cone than in…
Mechanical drawing
