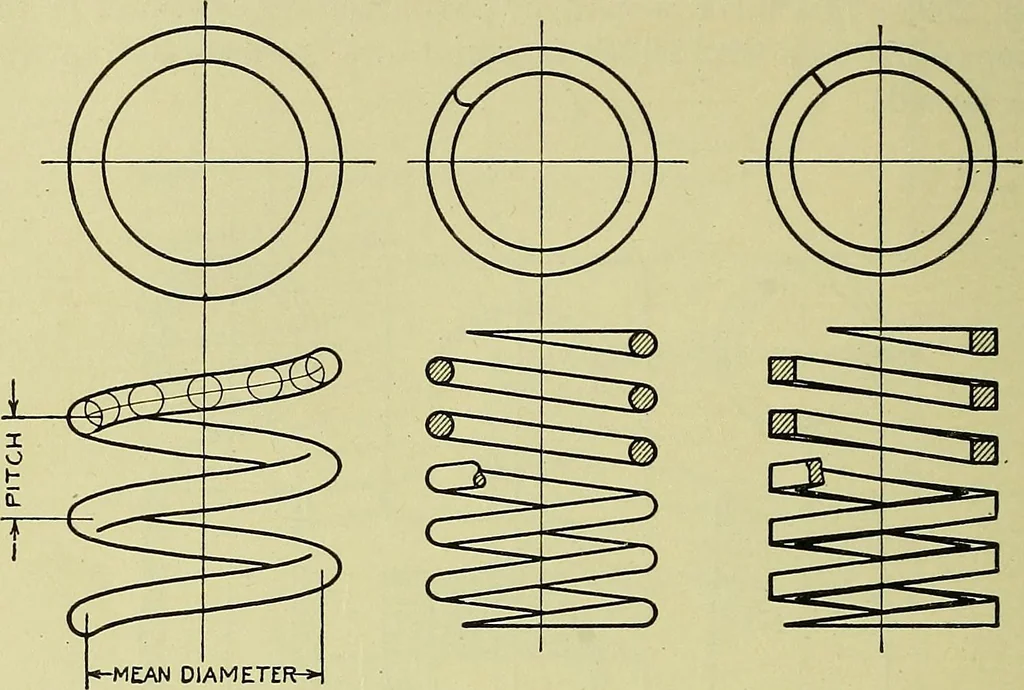

the curves are drawn and also theconventional representation which shows the curves replaced bystraight lines. Bolts and Nvts. A bolt consists of a rod with a head on oneend and a screw on the other to receive a nut. Fig. 291. Whatare known as United States Standard bolts and nuts are shown 256… … FiG. 290. Coil Spring Showing Actual and ConventionalEepeesentation
