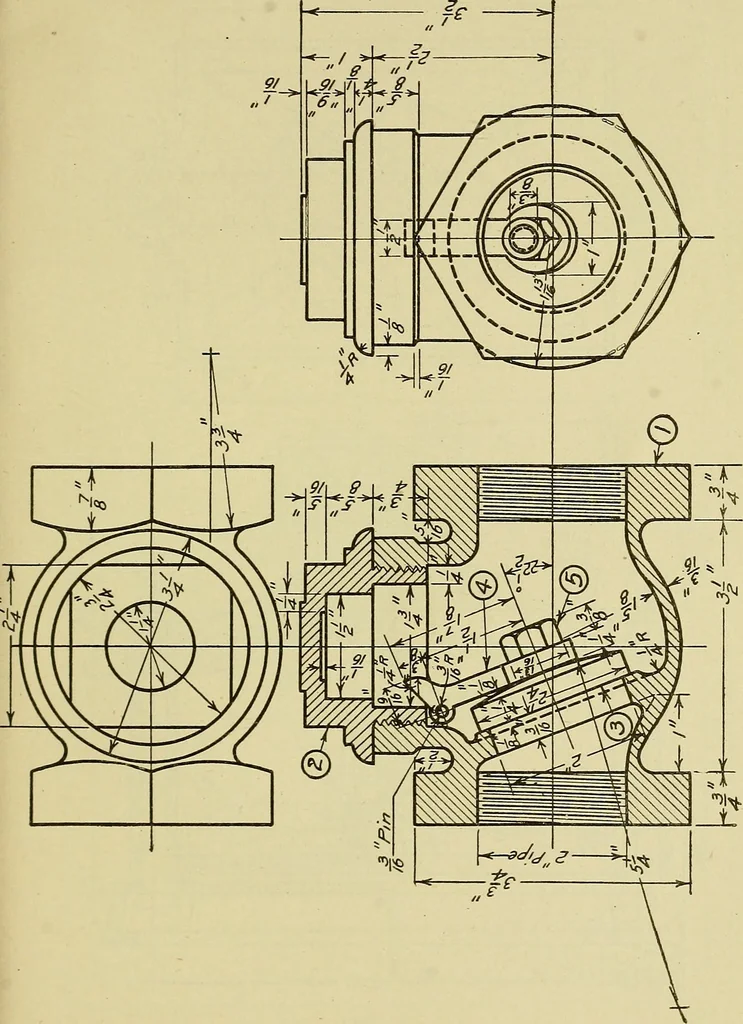

De^a/7 of Cap Fig. 325. Leveling Screw DATA FOR DRAWING PLATE 45 Given: An assembly drawing of a Leveling Screw, Fig.325; a flap valve. Fig. 326; and a letter press, Fig. 327. Required: To make freehand orthographic detail sketchof the object shown in Fig. 325, 326, 327, or any similar objectas… … Ph 286 MECHANICAL DRAWING
