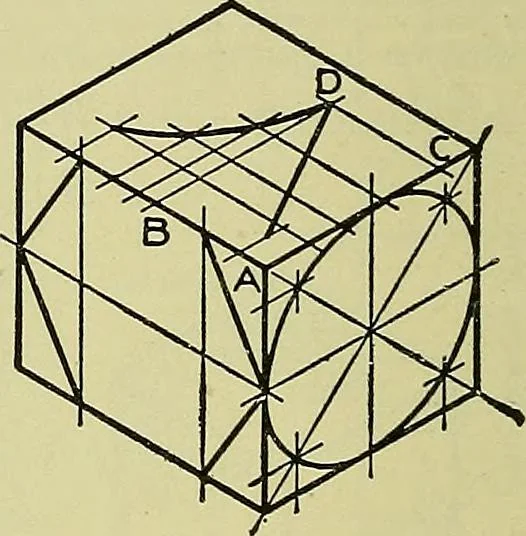

Fig. 343. Locating Points on Non-Isometkic Lines Using TwoCoordinates When non-isometric lines do not lie in a face of a rectangularsolid, three coordinates are necessary to locate points on eachline. In drawing the isometric of the frustum of the hexagonalpyramid. Fig. 344, the base is first…
