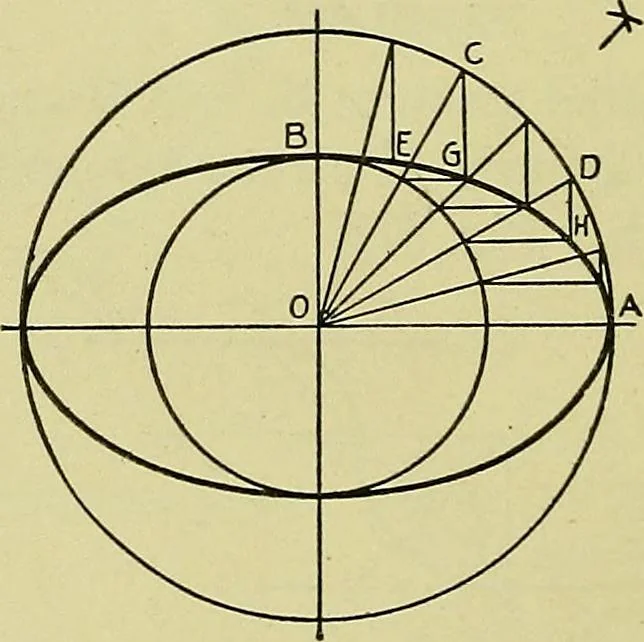

Fig. 379. Trammel Method of Drawing ax Ellipse Instructions: Trammel Method. Fig. 379. Mark off on acard, C D equal to 0 B and C E equal to O A. Keep the trammelwith the point D always on the major axis and point E alwayson the minor axis. Move the trammel and mark points oppositeC to form the… … Fig. 389. Construction Method of Drawing ax Ellipse Second Method. Fig. 380. Draw circles of radii equal to themajor and minor axes. Draw any radii 0 C, 0 D, etc.; drawC G, D H, etc., perpendicular to 0 A, and E G, etc., parallelto 0 A. G, H, etc., are points on the curve. INDEX Accurac}, 133…
