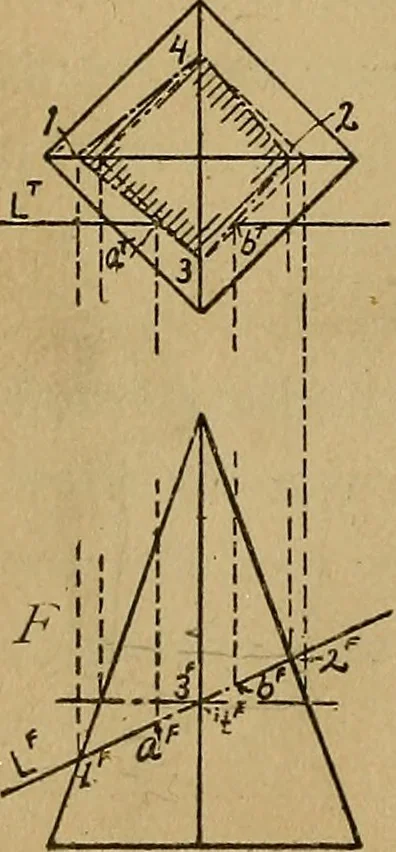

IN TERSE C TIONS. 99 177. Drawing G represents the same conditions as D. Tlie intersection may be found without drawingthe end view, by means of a cutting plane used asexplained in E and F. The cutting plane used in the illustration isperpendicular to the.front plane; and in the frontview points i,…
