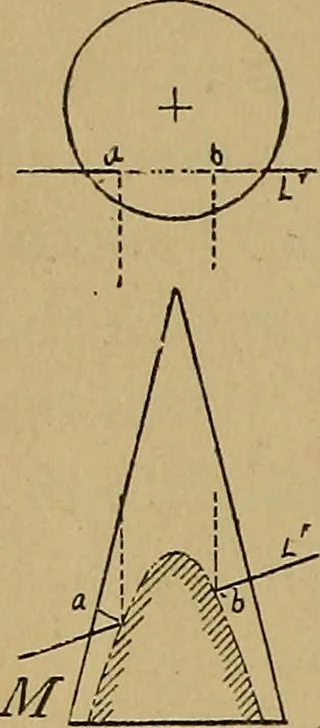

I02 AlE CHA NIC A L DRA WING. … 184. Drawing M represents a cone intersected by an inclinedline. To obtain the points of intersection, a cutting planeperpendicular to the front plane may be used; thiswill cut the cone in an ellipse, which will appear anellipse in the top view. A cutting plane perpendicularto the top plane is,…
